WS1L car waterproof micro switch

1. Through the rubber sealing ring and epoxy resin sealing to achieve stable sealing. Can be used in the place of water or dust.
2. Terminals are complete and can be equipped with various wires.
3. Equipped with various forms of boom.
4. It can be used in automobiles, vending machines, refrigerators, ice machines, bathroom equipment, water heaters, air conditioners and other occasions with environmental resistance requirements and outdoor equipment and instruments.

所属分类:

WS1L Waterproof Switch

关键词: WS1L car waterproof micro switch

产品附件:


在线留言
  • Description
  • Product Parameters
  • Video
    • Commodity name: WS1L car waterproof micro switch

    1. Through the rubber sealing ring and epoxy resin sealing to achieve stable sealing. Can be used in the place of water or dust.<br>2. Terminals are complete and can be equipped with various wires.<br>3. Equipped with various forms of boom.<br>4. It can be used in automobiles, vending machines, refrigerators, ice machines, bathroom equipment, water heaters, air conditioners and other occasions with environmental resistance requirements and outdoor equipment and instruments.

    WS1L Waterproof Switch Special High Waterproof Ring IP67 for Home Appliance

    Product Introduction
    WS1L waterproof switch is widely used in home appliances like refrigerator, ice machine,bath equipment and etc. It has special high waterproof ring and the waterproof rate is IP67. We specialize in the manufacture and sale of micro switches, waterproof switches, power switches, rotary switches and other products with over thirty years of experience.I hope we can do business together.

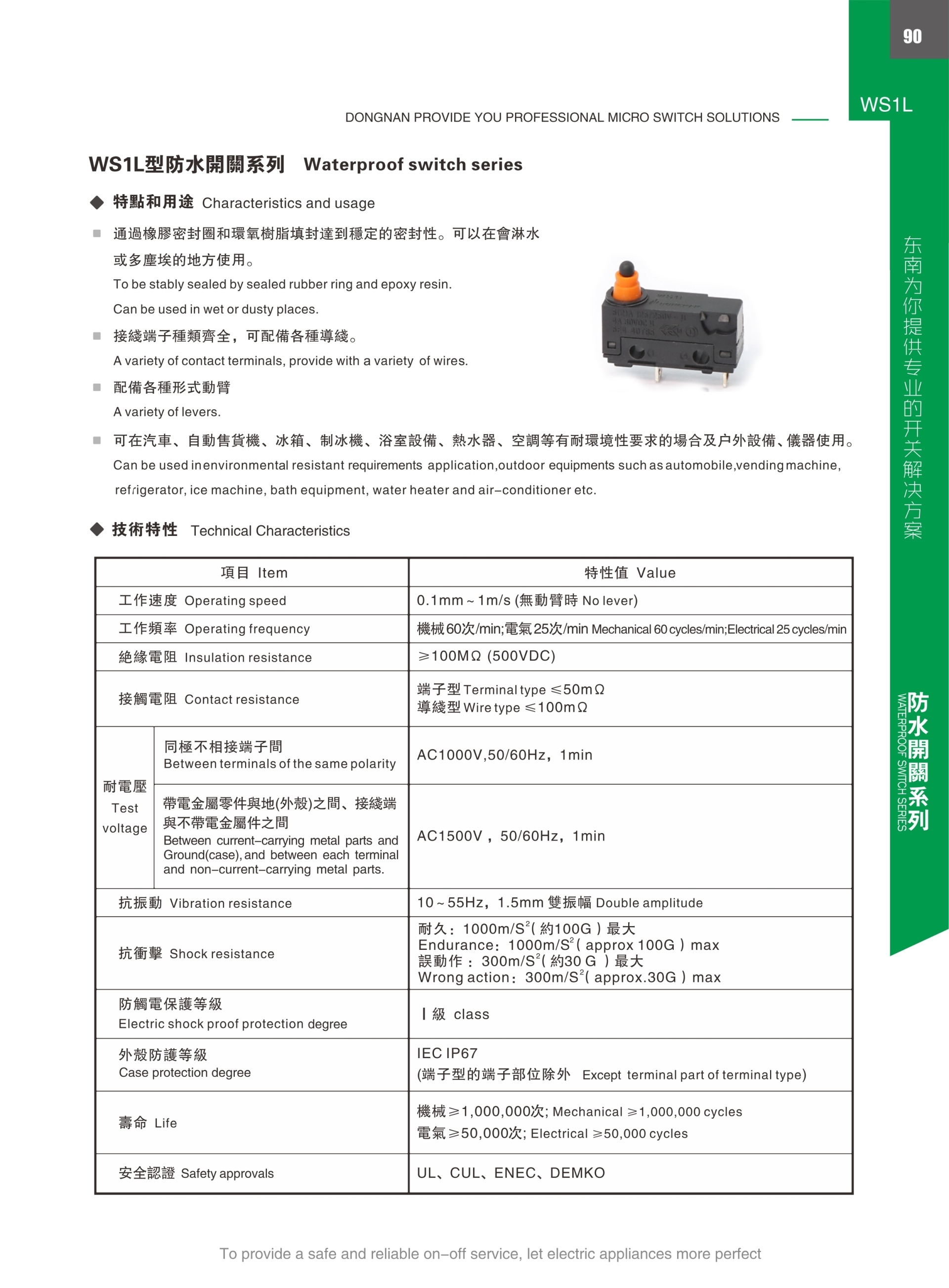

    1.Product Parameter

    Item

    Value

    Operating speed

    0.1mm~1m/s (no lever)

    Operating frequency

    Mechanical 60 cycles/min; electrical 25 cycles/min

    Insulation resistance

    ≥100MΩ(500VDC)

    Contact resistance

    Terminal type ≤ 50mΩ
     Wire type ≤ 100mΩ

    (Test voltage) Between terminals of the same polarity

    AC1000V , 50/60Hz , 1min

    (Test voltage) Between current-carrying metal parts and Ground(case), and between each terminal and non-current-carrying  metal  parts.

    AC1500V , 50/60Hz , 1min

    Vibration resistance

    10~55Hz , 1.5mm Double  amplitude

    Shock resistance

    endurance : 1000m/s2(approx. 100G) max
    Wrong action : 300m/s2 (approx. 30G) max

    Electric shock proof protection grade

    I class

    Degree protection provided by enclosure

    IEC IP67 (Besides terminal part of terminal  type )

    Life

    Mechanical ≥ 1,000,000 cycles
    Electrical ≥ 50,000 cycles

    Safety approvals

    UL ,CUL ,ENEC ,DEMKO



    2.Product Feature
    WS1L waterproof micro switch can be used in wet environments like bathrooms, cars, etc. because it uses a special high waterproof ring. It greatly improves the waterproof effect. It is equipped with various levers and contact terminals for selection. If you have special requirements, we can make custom-made waterproof micro switch.
