WS2 Waterproof Micro Switch
2. Equipped with welding terminal and terminal with wire.
3. Equipped with various forms of boom.
4.WS2 waterproof micro switch can be used in automobiles, agricultural machinery, large household appliances, office equipment and other occasions with environmental resistance requirements.
WS2 Waterproof Switch
关键词： WS2 Waterproof Micro Switch

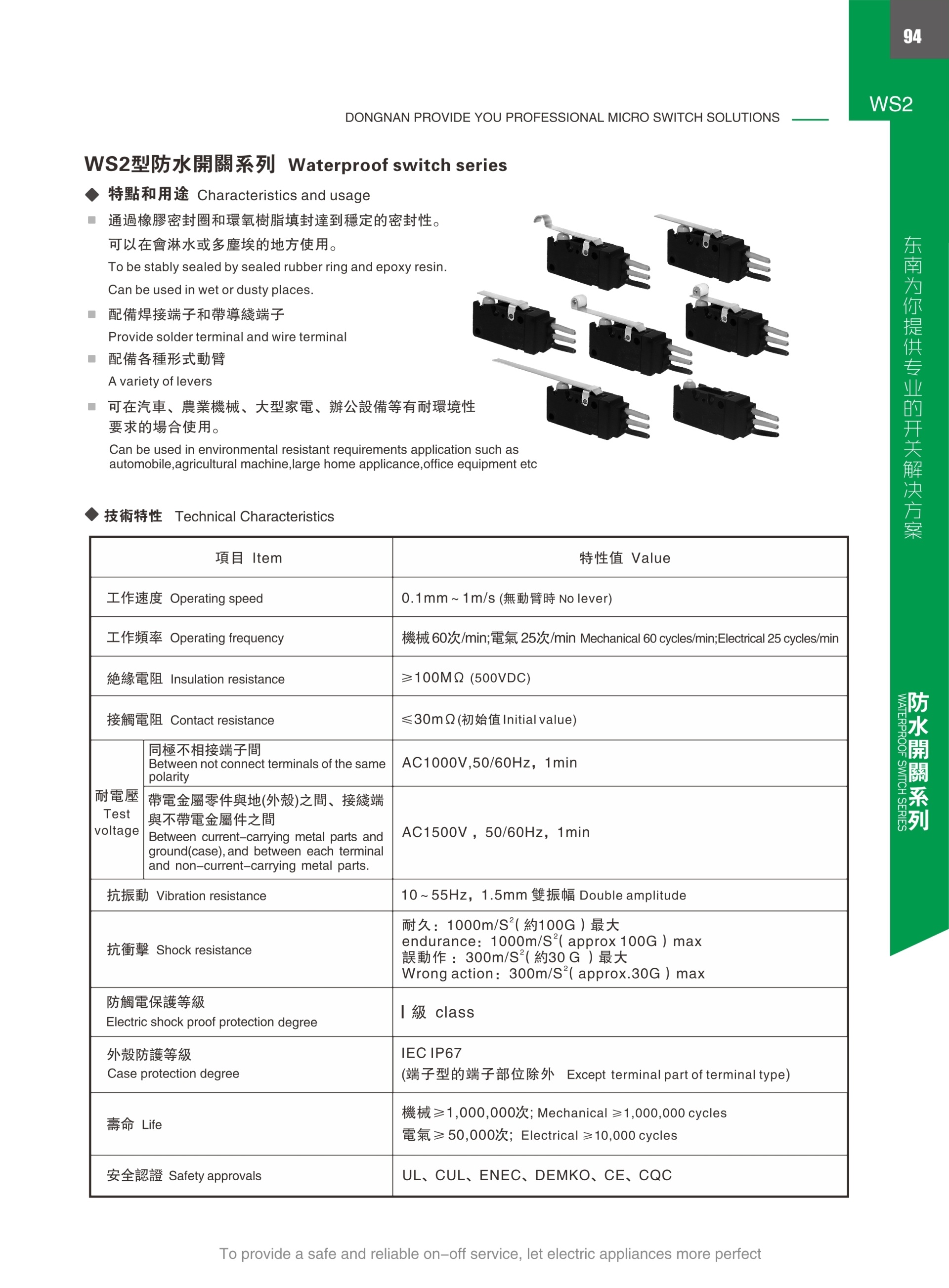

- Product Parameters
- Commodity name: WS2 Waterproof Micro Switch
WS2 Waterproof Switch Customization High Quality Dust-proof with UL CUL ENEC IP67
WS2 waterproof switch can be ccustomised according to customer's needs, we have a mould department.It has a high-quality dustproof effect and has obtained international certificates such as UL ENENC. We are a professional waterproof micro switch exporter in China and we devote ourselves to micro switch for many years covering of most Europe market. We believe that many years of our experiences in international trade will undoubtedly meet your requirements.
0.1mm~1m/s (no lever)
Mechanical 60 cycles/min; electrical 25 cycles/min
≤ 30mΩ(Initial value)
(Test voltage) Between not connect terminals of the same polarity
AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-cueeent-carrying metal parts.
AC1500V , 50/60Hz , 1min
10~55Hz , 1.5mm Double amplitude
endurance : 1000m/s2(approx. 100G) max
Wrong action : 300m/s2 (approx. 30G) max
Electric shock proof protection grade
Degree protection provided by enclosure
IEC IP67 (Besides terminal part of terminal type )
Mechanical ≥ 1,000,000 cycles
Electrical ≥ 50,000 cycles
UL ,CUL ,ENEC ,DEMKO,CE,CQC

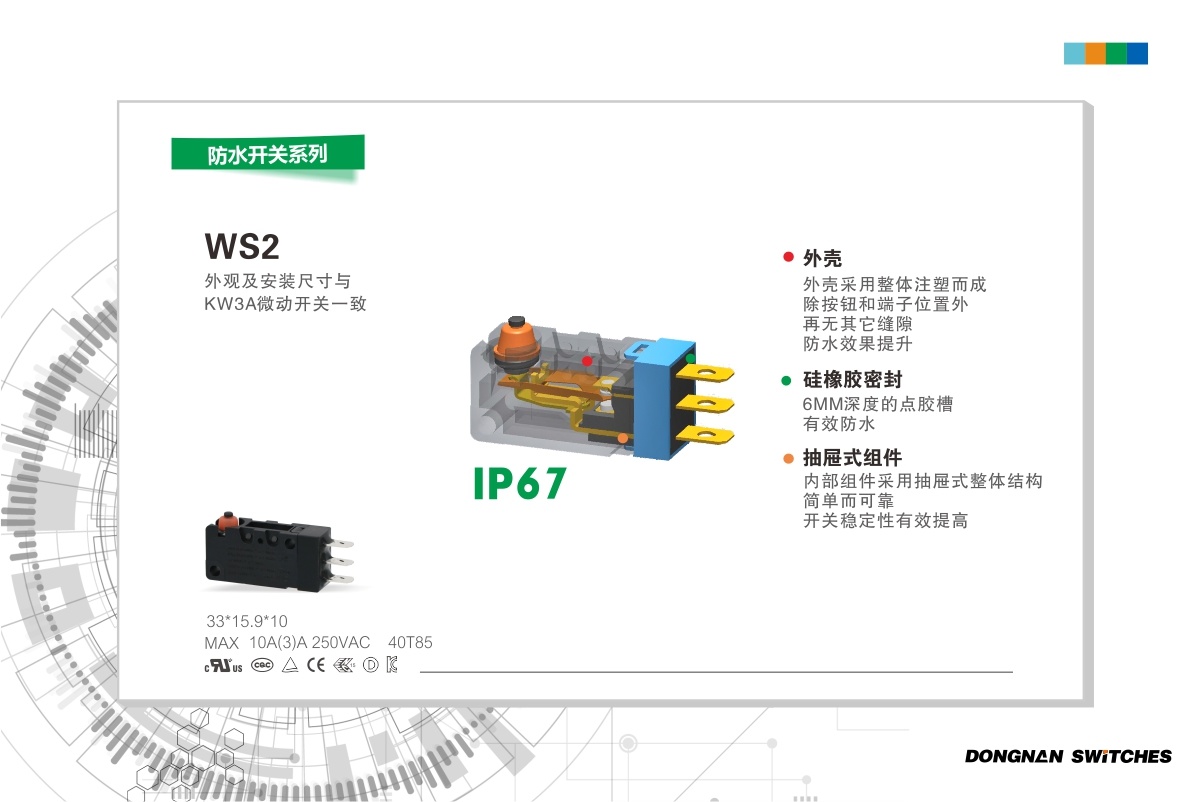

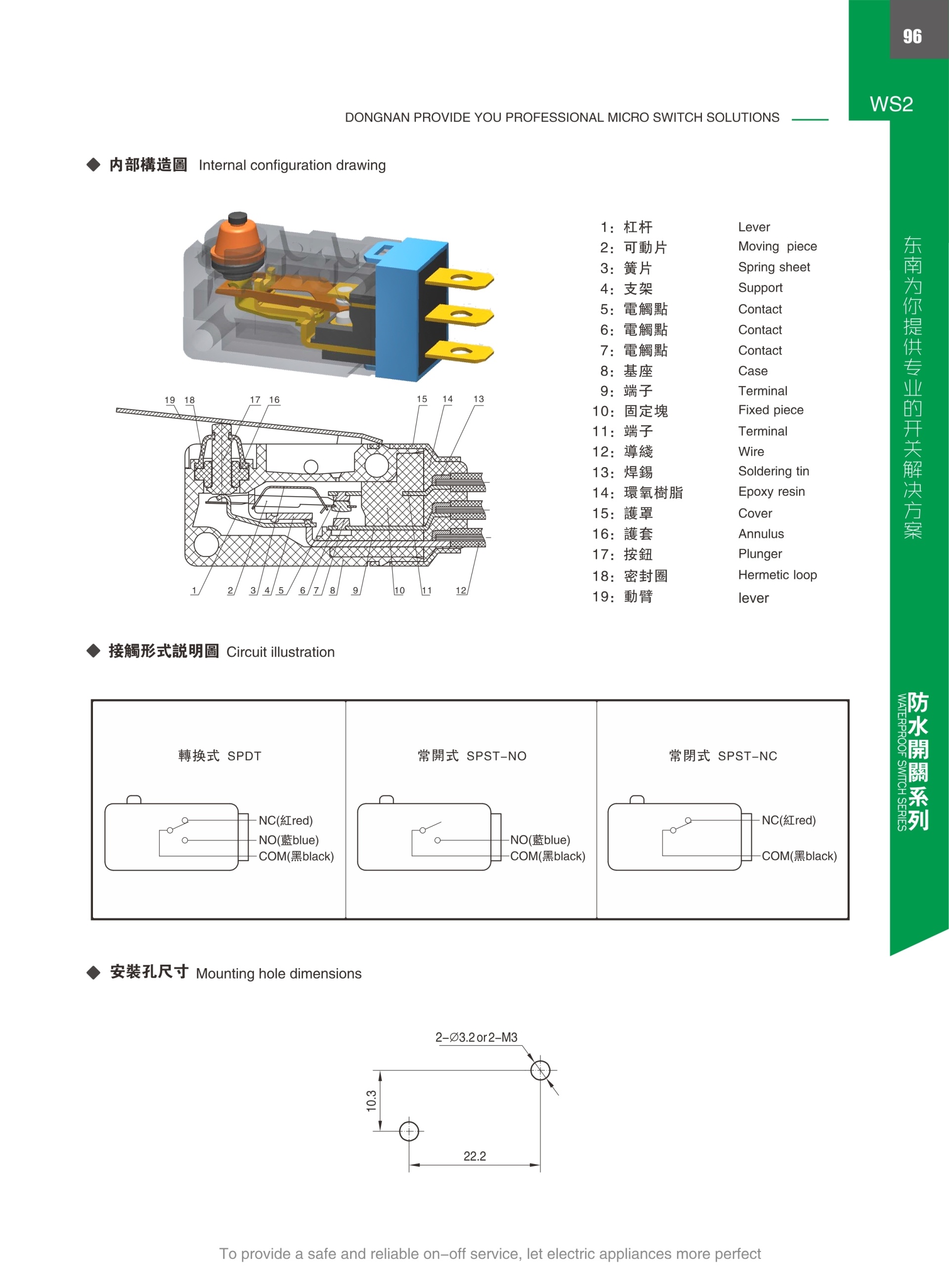

The internal components of the WS2 waterproof micro switch have a drawer-type integral structure, which is a more simple and safe switch. The switch's stability is also effectively improved. And the waterproof micro switch AC1500V adopts one-piece shell, which improves the waterproof effect. It can be used in automobile, agricultural machine and etc.Key words:
