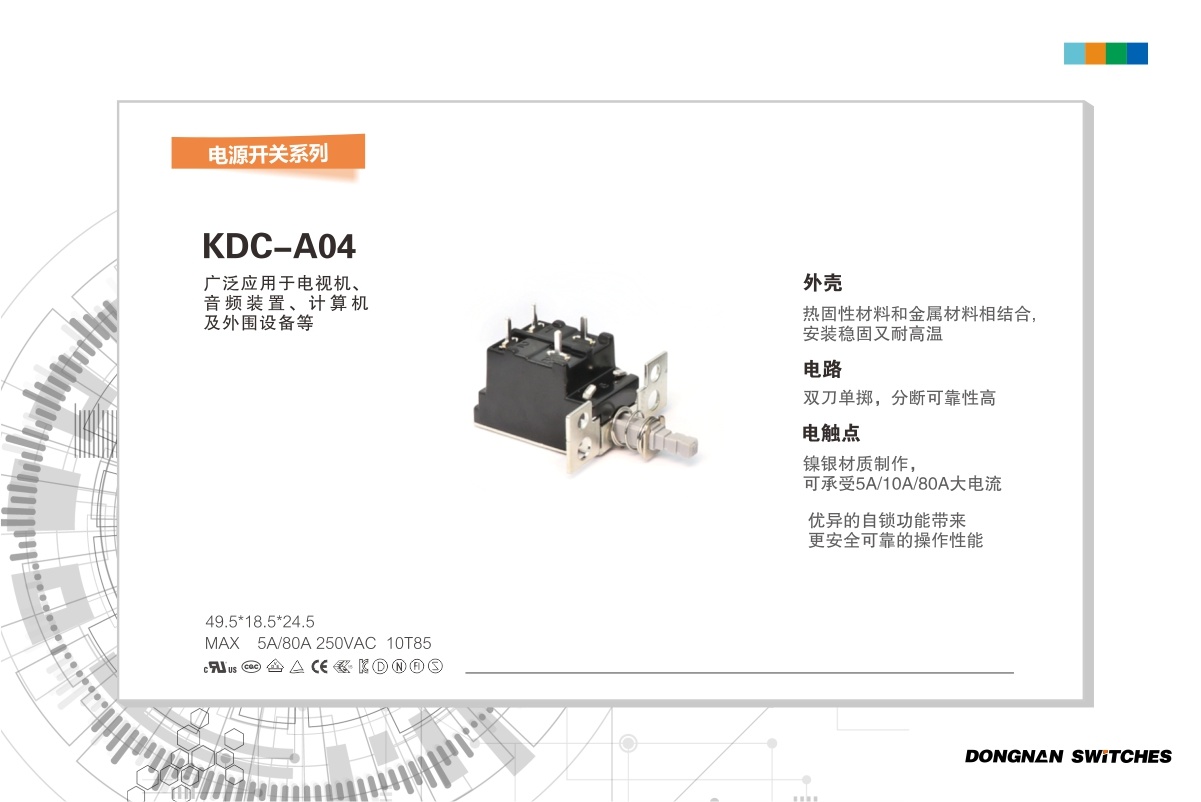

KDC-A04 power switch

1. It has the characteristics of fast action.
2. Can withstand high current and surge current.
3. High reliability and long life.
4. Widely used in televisions, audio devices, computers and peripherals.

所属分类:

KDC-A04 Power Switch

关键词: KDC-A04 power switch

产品附件:


在线留言
  • Description
  • Product Parameters
  • Video
    • Commodity name: KDC-A04 power switch

    1. It has the characteristics of fast action.<br>2. Can withstand high current and surge current.<br>3. High reliability and long life.<br>4. Widely used in televisions, audio devices, computers and peripherals.

    KDC-A11 Power Switch Small Size with Excellent Self-locking Function



    1.Product Introduction
    KDC-A04 is made of thermosetting material and have high temperature resistance ability. Its nickle silver contact can withsatnd high current. We have been producing power switches for many years, and our products have passed UL,CUL,CE and other international certifications. If you are interested in our power switch products and want to know more, please remember to contact us anytime.



    2.Product Parameter

    Item

    Value

    Environment  temperature

    -10~+85°C

    Relative humidity

    95%,40°C

    Ratings

    TV-5 125VAC , 10GPA125/250VAC , 10A125/250VAC
    5A/80A250VAC

    Operating travel/full

    2.5mm/3.5mm

    Operating force

    2N~8N

    Circuit

    DPST

    Insulation resistance

     ≥100MΩ

    Contact resistance

    ≤ 50mΩ

    (Test voltage)  Between each terminals of the same polarity

    AC2000V

    (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts

    AC4000V

    Electrical Life

    10,000 cycles

    Weight

    Approx . 16g

    Sofety approavals

    UL , CUL , VDE , ENEC  , SEMKO , DEMKO , NEMKO , FIMKO ,CE , EK , CQC



    3.Product Feature and Application
    The KDC-A04 micro power switch features fast action and high temperature resistance. It can endure big current and inrush current. Widely used in color TV, audio device,computer, etc. This power switch is applied for many internation certificates and has excellent self-lock function to making reliability
