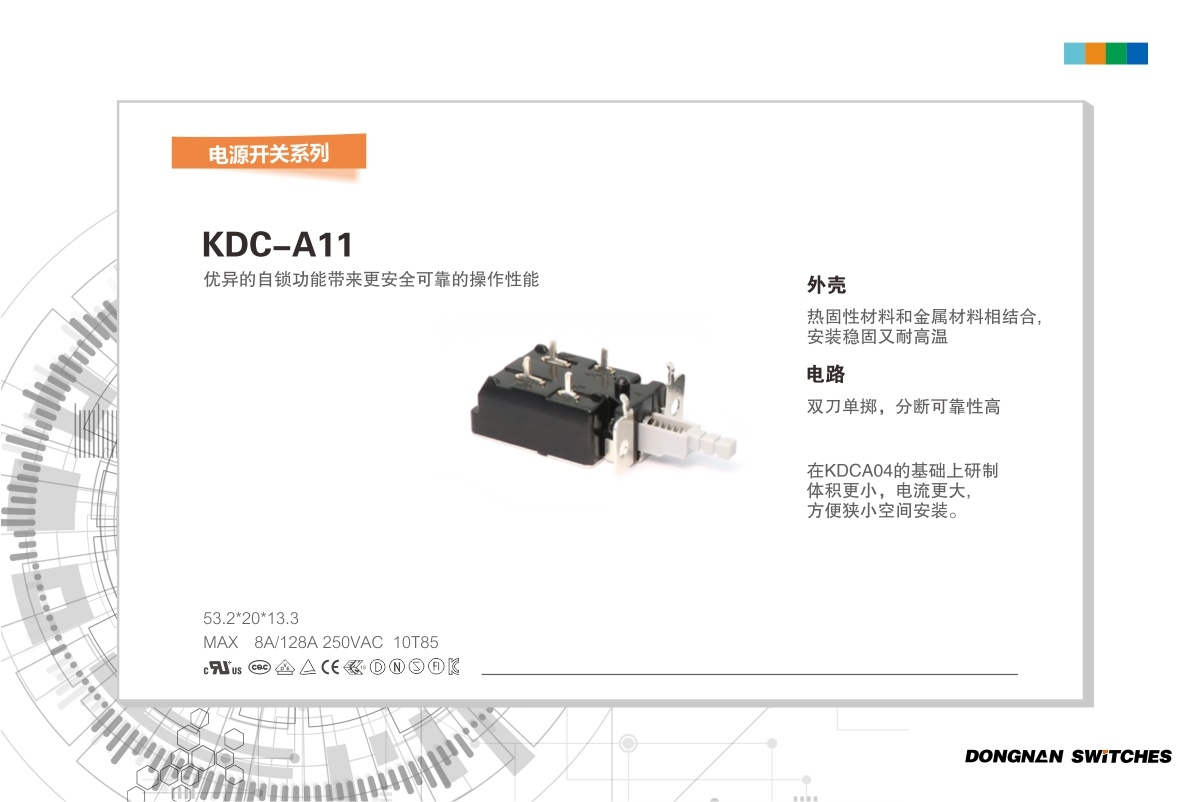

KDC-A11 power switch

1. It has the characteristics of fast action.
2. Flat shape, compact structure and small size.
3. Can withstand high current and surge current.
4. Widely used in color TV, audio devices, computers and peripheral equipment, instrumentation, electronic equipment, etc.

所属分类:

KDC-A11 Power Switch

关键词: KDC-A11 power switch

产品附件:


在线留言
  • Description
  • Product Parameters
  • Video
    • Commodity name: KDC-A11 power switch

    1. It has the characteristics of fast action.<br>2. Flat shape, compact structure and small size.<br>3. Can withstand high current and surge current.<br>4. Widely used in color TV, audio devices, computers and peripheral equipment, instrumentation, electronic equipment, etc.

    KDC-A11 Power Switch Small Size with Excellent Self-locking Function



    1.Product Introduction
    KDC-A11 power switch is small size and can easy installation. Excellent seld-lock function brings more safe and reliable operation performance. We are leading switch company and have developed and produced a variety of power switches. If you want to buy power switches,please call us.

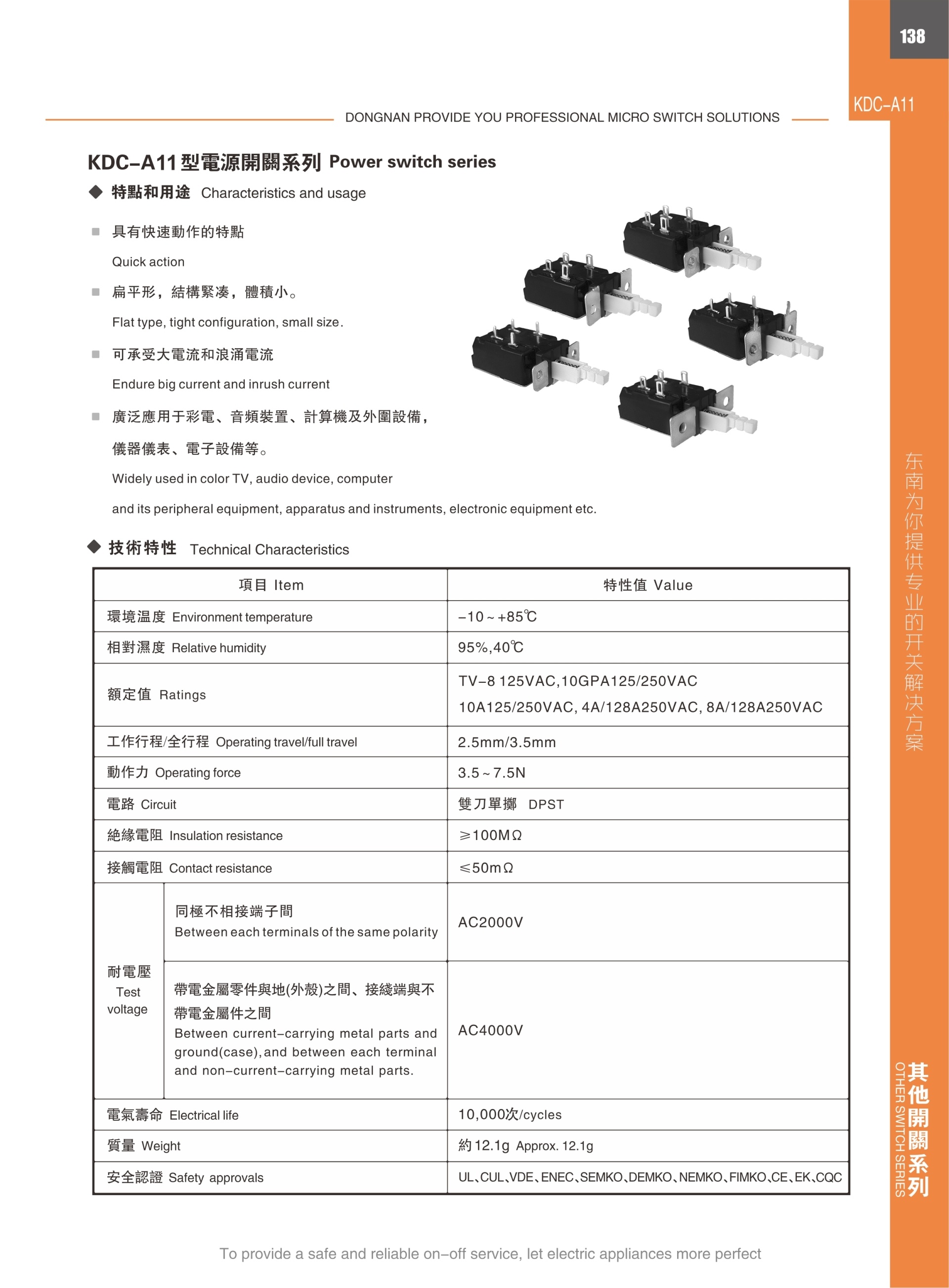

    2.Product Parameter

    Item

    Value

    Environment  temperature

    -10~+85°C

    Relative humidity

    95%,40°C

    Ratings

    TV-8 125VAC , 10GPA125/250VAC , 10A125/250VAC
    4A/128A250VAC , 8A/128A250VAC

    Operating travel/full

    2.5mm/3.5mm

    Operating force

    3.5N~7.5N

    Circuit

    DPST

    Insulation resistance

     ≥100MΩ

    Contact resistance

    ≤ 50mΩ

    (Test voltage)  Between each terminals of the same polarity

    AC2000V

    (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts

    AC4000V

    Electrical Life

    10,000 cycles

    Weight

    Approx . 16g

    Sofety approavals

    UL , CUL , VDE , ENEC  , SEMKO , DEMKO , NEMKO , FIMKO ,CE , EK , CQC



    3.Product Feature and Application
    The KDC-A11 small size power switch has been engineered to withstand high current and inrush currents, making it ideal for use in a variety of applications. From home entertainment systems, audio equipment, computers and peripherals, to precision instruments and electronic devices, this micro power switch is a reliable and versatile choice for all your power needs.
