RS1 Vacuum Cleaner Button Switch

1. Multiple conversion methods, multiple gears.
2. Various terminal forms.
3. Multiple shell and button colors.
4. With multiple rating levels.
5. Widely used in household appliances, electronic equipment, automation equipment and similar equipment.

所属分类:

RS1 Rocker Switch

关键词: RS1 Vacuum Cleaner Button Switch

产品附件:


在线留言
  • Description
  • Product Parameters
  • Video
    • Commodity name: RS1 Vacuum Cleaner Button Switch

    1. Multiple conversion methods, multiple gears.<br>2. Various terminal forms.<br>3. Multiple shell and button colors.<br>4. With multiple rating levels.<br>5. Widely used in household appliances, electronic equipment, automation equipment and similar equipment.

    RS1 Rocker Switch Various Colors Long Life with Full Contact Contact Structure1.Product Introduction of RS1 Rocker Switch



    RS1 rocker switch have various colors . Its full contact contact structure can provide long service life.We have been providing quality rocker switches for over thirty years. We are willing to serve you.



    2.Product Parameter

    Item

    Value

    Operating Frequency

    Mechanical 60cycles/min; Electrical 15 cycles/min

    Insulation resistance

    ≥ 100MΩ(500VDC)

    Contact resistance

    ≤ 30mΩ(Initial value)

    (Test voltage) Between not connect terminals of the same Polarity.

    AC1500v , 50/60Hz , 1min

    (Test voltage) Between current-cattying metal parts and ground(case), and between each terminal and non-current-carrying  metal parts.

    AC1500v , 50/60Hz , 1min

    Vibration resistance

    10~55Hz , 1.5mm Double amplitude

    Electrical life

    50,000 cycles

    Safety approvals

    UL , CUL , TUV , SEMKO , CE , CQC



    3.Product Feature and Application

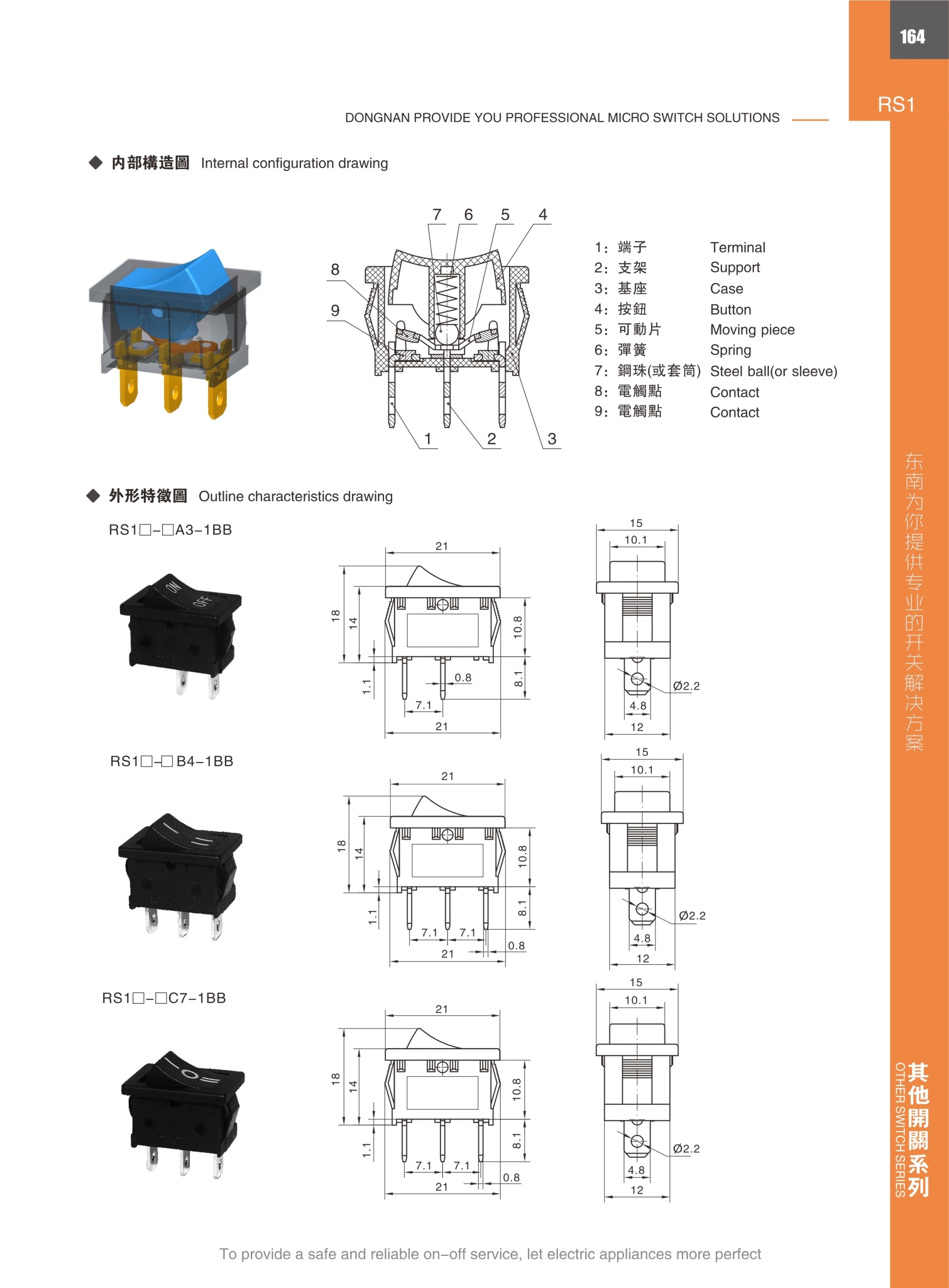

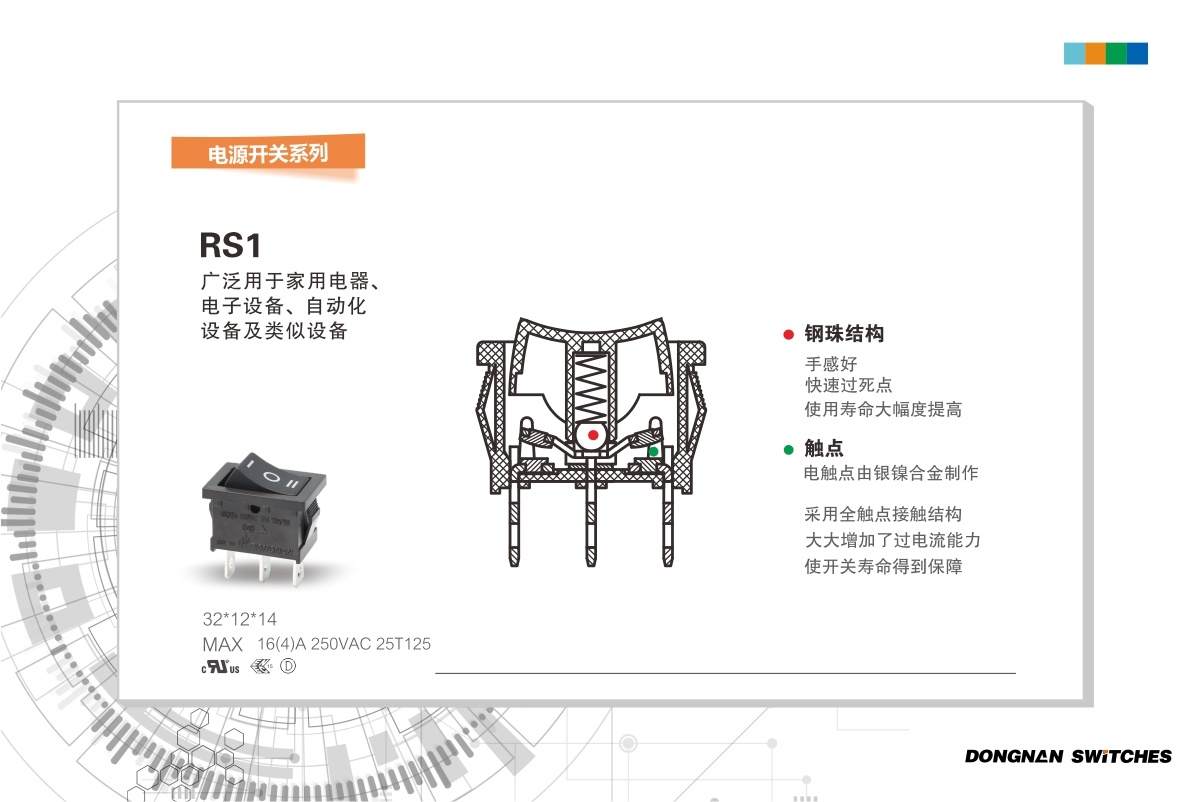

    The RS1 micro rocker switch is constructed with a steel ball construction that allows for a fast dead-end point and a substantial increase in service life. In addition, the switch adopts a full contact contact structure, which greatly increases overcurrent capacity and guarantees the life of the switch.
