RS2 Boat Switch
2, a variety of terminal types.
3, a variety of shell and button colors.
4, widely used in household appliances, electronic equipment, automation equipment and similar equipment.
所属分类：
RS2 Rocker Switch
关键词： RS2 Boat Switch
产品附件：
在线留言
- Description
- Product Parameters
- Video
-
- Commodity name: RS2 Boat Switch
1, multiple conversion methods, multiple gears.<br>2, a variety of terminal types.<br>3, a variety of shell and button colors.<br>4, widely used in household appliances, electronic equipment, automation equipment and similar equipment.
RS2 Rocker Switch Waterproof with Multi-action Places for Automatization Equipments
1.Product Introduction
RS2 rocker switch is automatization equipments switch with drainage design for waterproof. Multiple gears can fit different equipment. We have an excellent team to produce and develop rocker switches for many famous brands. Contact us with any questions.2.Product Parameter

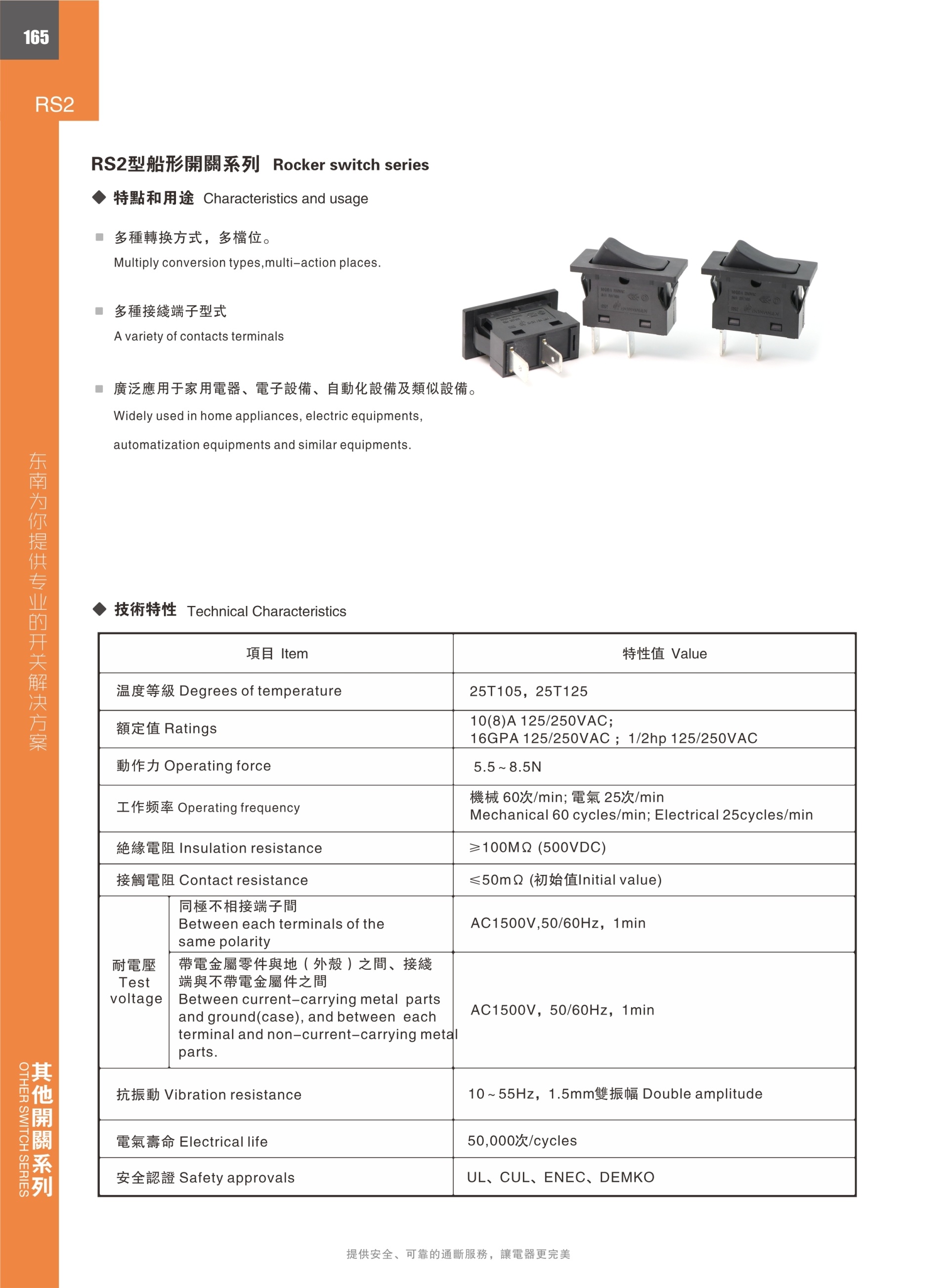

Item
Value
Degrees of temperature
25T105 , 25T125
Ratings
10(8)A 125/250VAC;
16GPA 125/250VAC ; 1/2hp 125/250VACOperating force
5.5~8.5N
Operating Frequency
Mechanical 60cycles/min; Electrical 15 cycles/min
Insulation resistance
≥ 100MΩ(500VDC)
Contact resistance
≤ 50mΩ(Initial value)
(Test voltage) Between each terminals of the same Polarity.
AC1500v , 50/60Hz , 1min
(Test voltage) Between current-cattying metal parts and ground(case), and between each terminal and non-current-carrying metal parts.
AC1500v , 50/60Hz , 1min
Vibration resistance
10~55Hz , 1.5mm Double amplitude
Electrical life
50,000 cycles
Safety approvals
UL , CUL , ENEC , SEMKO
3.Product Feature and Application
RS2 micro rocker switch is a kind of power switch with various conversion methods and gears. It is suitable for all kinds of automation equipment. It has a variety of terminal forms to provide more convenient installation and use. In addition, the RS2 rocker switch with waterproof function can be used in humid environments.
