RS3 Boat Switch
2, a variety of terminal types.
3, a variety of shell and button colors.
4, widely used in household appliances, electronic equipment, automation equipment and similar equipment.
所属分类：
RS3 Rocker Switch
关键词： RS3 Boat Switch
产品附件：
在线留言
- Description
- Product Parameters
- Video
-
- Commodity name: RS3 Boat Switch
1, multiple conversion methods, multiple gears.<br>2, a variety of terminal types.<br>3, a variety of shell and button colors.<br>4, widely used in household appliances, electronic equipment, automation equipment and similar equipment.
RS3 Rocker Switch DPDT Full Sliver Contact for Electric Equipments
1.Product Introduction
RS3 rocker switch is DPDT and full Sliver Contact. It makes more safe and reliable for Electric equipments. We as a large domestic key switch manufacturer, can provide a variety of high-quality waterproof micro switch products. We wish to co-operate with you.2.Product Parameter

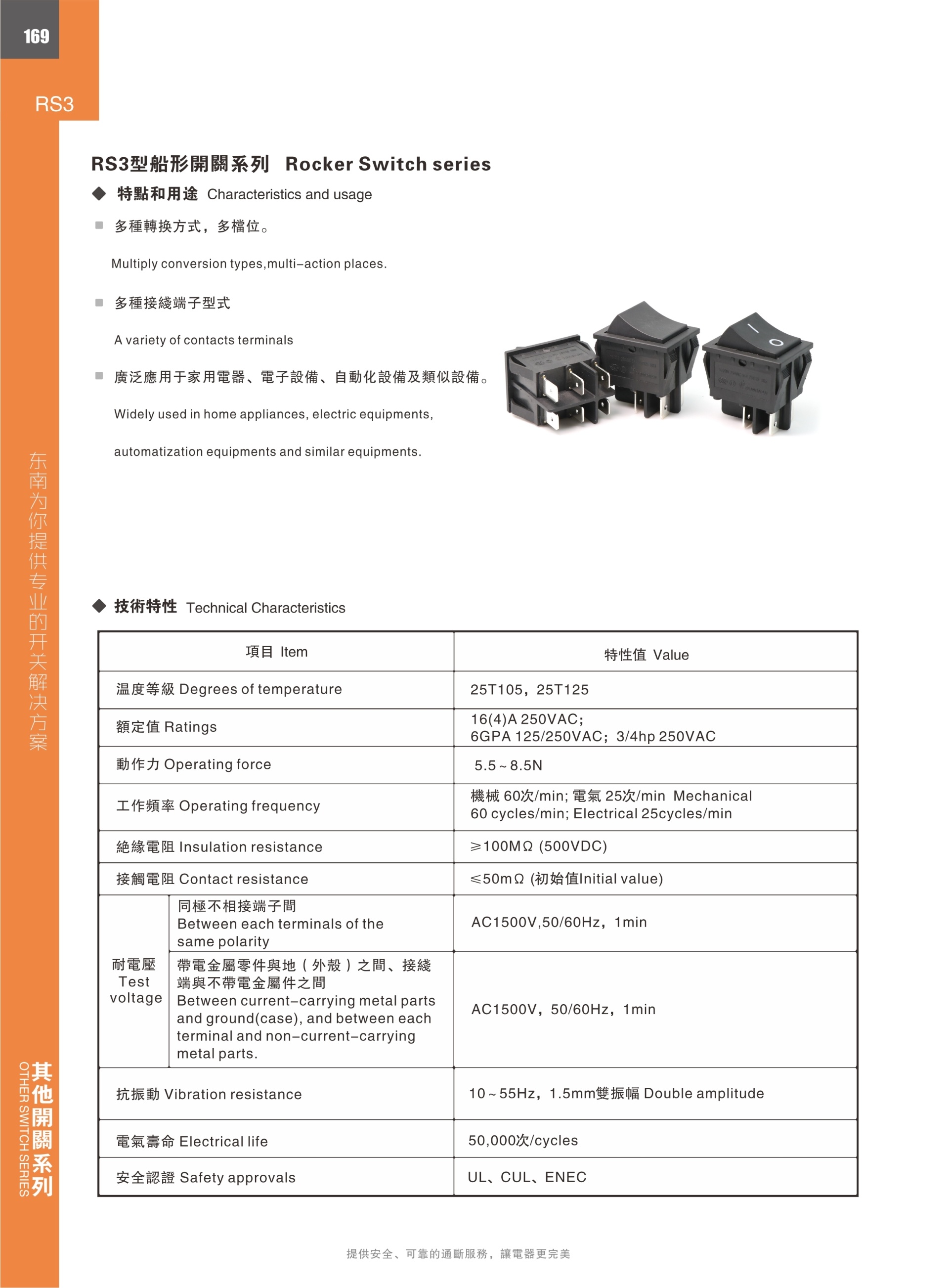

Item
Value
Degrees of temperature
25T105 , 25T125
Ratings
16(4)A 250VAC;
6GPA 125/250VAC ; 3/4hp 250VACOperating force
5.5~8.5N
Operating Frequency
Mechanical 60cycles/min; Electrical 15 cycles/min
Insulation resistance
≥ 100MΩ(500VDC)
Contact resistance
≤ 50mΩ(Initial value)
(Test voltage) Between each terminals of the same Polarity.
AC1500v , 50/60Hz , 1min
(Test voltage) Between current-cattying metal parts and ground(case), and between each terminal and non-current-carrying metal parts.
AC1500v , 50/60Hz , 1min
Vibration resistance
10~55Hz , 1.5mm Double amplitude
Electrical life
50,000 cycles
Safety approvals
UL , CUL , ENEC
3.Product Feature and Application
The RS3 micro rocker switch is a safe and reliable switch for household appliances. Its double-pole double-throw design and all-silver contacts ensure the safety of electrical appliances during use. Multiply conversion types and multi-point circuit combination design provide more convenience and safety guarantee.
Key words:- RS3
