WS7 waterproof micro switch

1. The product structure is simple and reliable, dustproof and waterproof.
2, can be equipped with a variety of wires.
3, WS7 waterproof micro switch can be used in building door and window control devices and industrial control equipment.

Category:

WS7 Waterproof Switch

Keyword: WS7 waterproof micro switch

Accessories:


Message
  • Description
  • Product Parameters
  • Video
    • Commodity name: WS7 waterproof micro switch

    1. The product structure is simple and reliable, dustproof and waterproof.<br>2, can be equipped with a variety of wires.<br>3, WS7 waterproof micro switch can be used in building door and window control devices and industrial control equipment.

    WS7 Waterproof Switch Dustproof for Building Door and Window Control Devices



    1.Product Introduction
    WS7 waterproof switch is hermetically sealed and reliable, with strong dustproof capability. It is widely used in building door and window control devices. We provide customers with competitive waterproof micro switch and satisfactory service and we also implement quality service awareness to every employee. Welcome new and old customers to consult and cooperate.

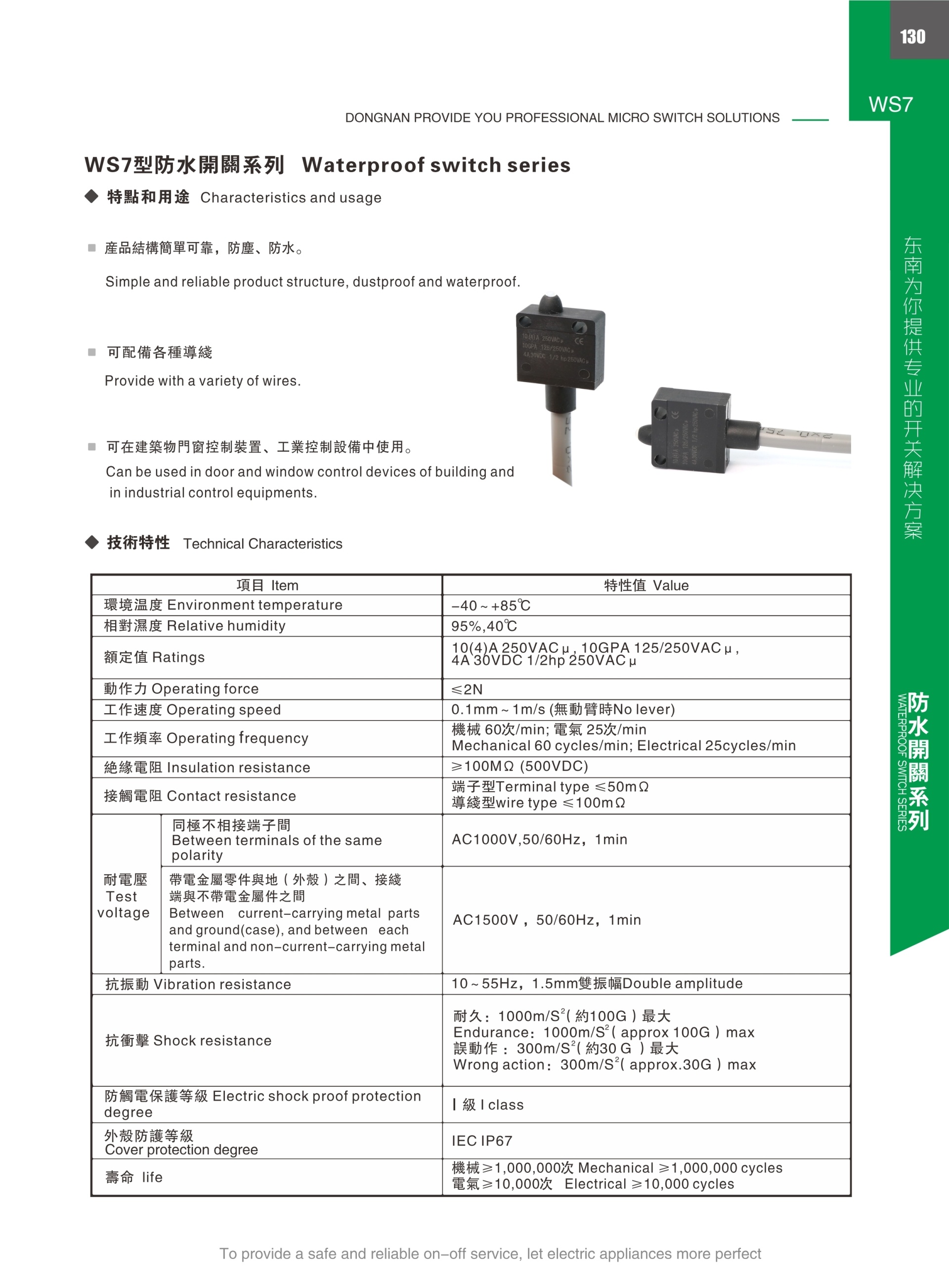

    2.Product Parameter

    Item

    Value

    Environment  temperature

    -40~+85°C

    Relative humidity

    95%,40°C

    Ratings

    10(4)A 250VAC μ,10GPA 125/250VAC μ,
    4A 30VDC 1/2hp 250VAC μ

    Operating force

    ≤ 2N

    Operating speed

    0.1mm~1mm/s (no lever)

    Operating frequency

    Mechanical 60 cycles/min; electrical 25 cycles/min

    Insulation resistance

     ≥100MΩ(500VDC)

    Contact resistance

    Terminal type≤ 50mΩ
    Wire type≤ 100mΩ

    (Test voltage) Between non-continuous terminals

    AC1000V , 50/60Hz , 1min

    (Test voltage) Between each terminal and other exposed metal parts
    Between each terminal and ground

    AC1500V , 50/60Hz , 1min

    Vibration resistance

    10~55Hz , 1.5mm Double  amplitude

    Shock resistance

    endurance:1000m/s2(approx.100G)max
     Wrong action:300m/s2(approx.30G)max

    Electric shock proof protection grade

    I class

    Cover protection degree

     IEC IP67

    Electrical Life

    Mechanical ≥ 1,000,000 cycles
    Electrical ≥ 10,000 cycles



    3.Product Feature and Application

    Designed with reliability in mind, the WS7 waterproof micro switch features reliable sealing against dust and other external elements. This ensures uninterrupted operation even in harsh industrial environments. Its simple yet robust construction ensures excellent performance and longevity.

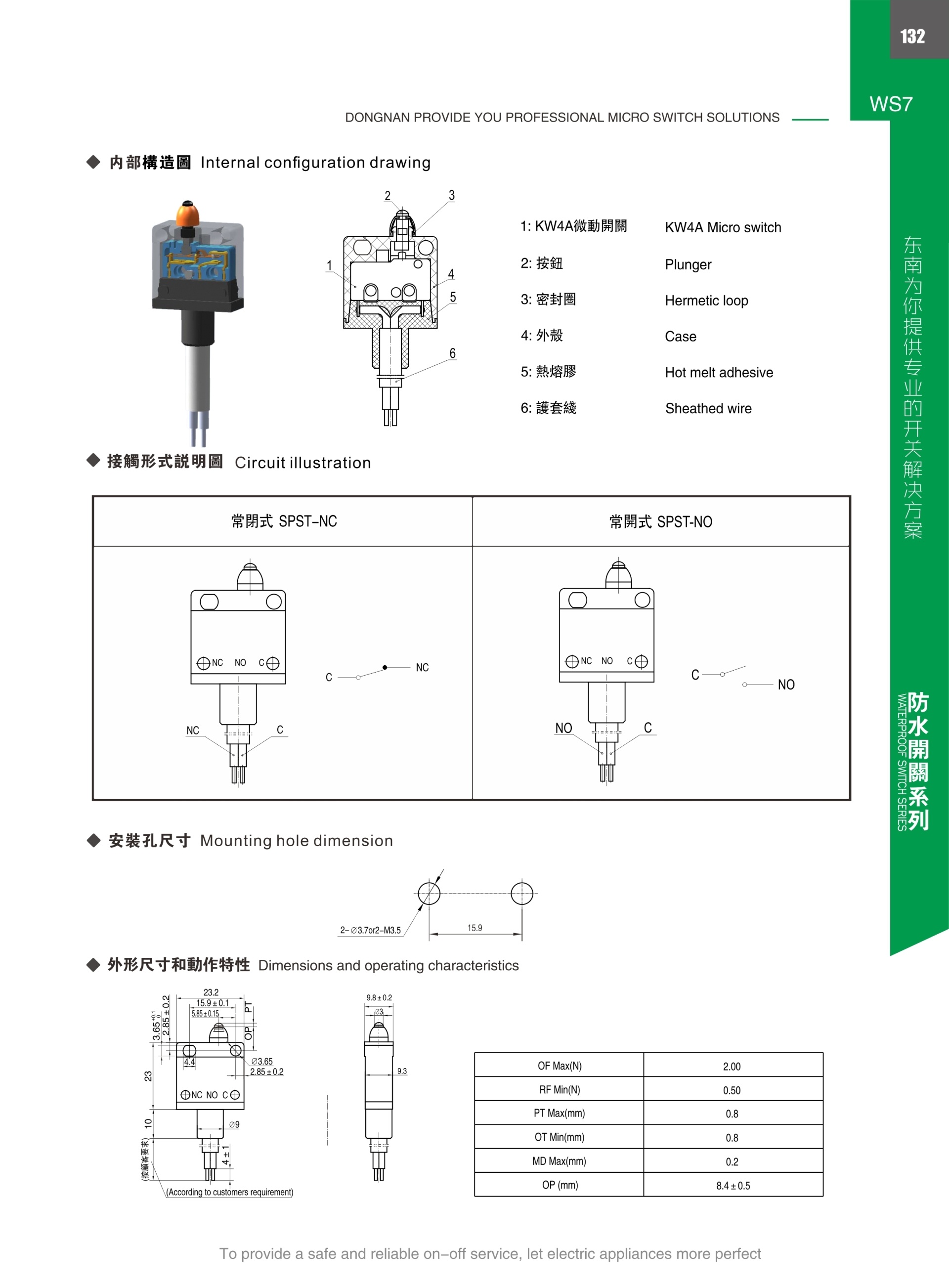

    The internal components of this switch uses our KW4A switches, which are renowned for their stable performance and long service life. This combination ensures that this waterproof IP67 micro switch delivers consistent results for industrial control applications.
