KW4A(S) car cosmetic mirror micro switch

1. Compact structure. It has the characteristics of small contact gap, fast action, high sensitivity and small action stroke.
2. Long life and high reliability.
3. Complete terminal types.
4. Equipped with various forms of boom.
5. Widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, instrumentation and other fields.

所属分类:

KW4AS Micro Switch

关键词: KW4A(S) car cosmetic mirror micro switch

产品附件:


在线留言
  • Description
  • Product Parameters
  • Video
    • Commodity name: KW4A(S) car cosmetic mirror micro switch

    1. Compact structure. It has the characteristics of small contact gap, fast action, high sensitivity and small action stroke.<br>2. Long life and high reliability.<br>3. Complete terminal types.<br>4. Equipped with various forms of boom.<br>5. Widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, instrumentation and other fields.

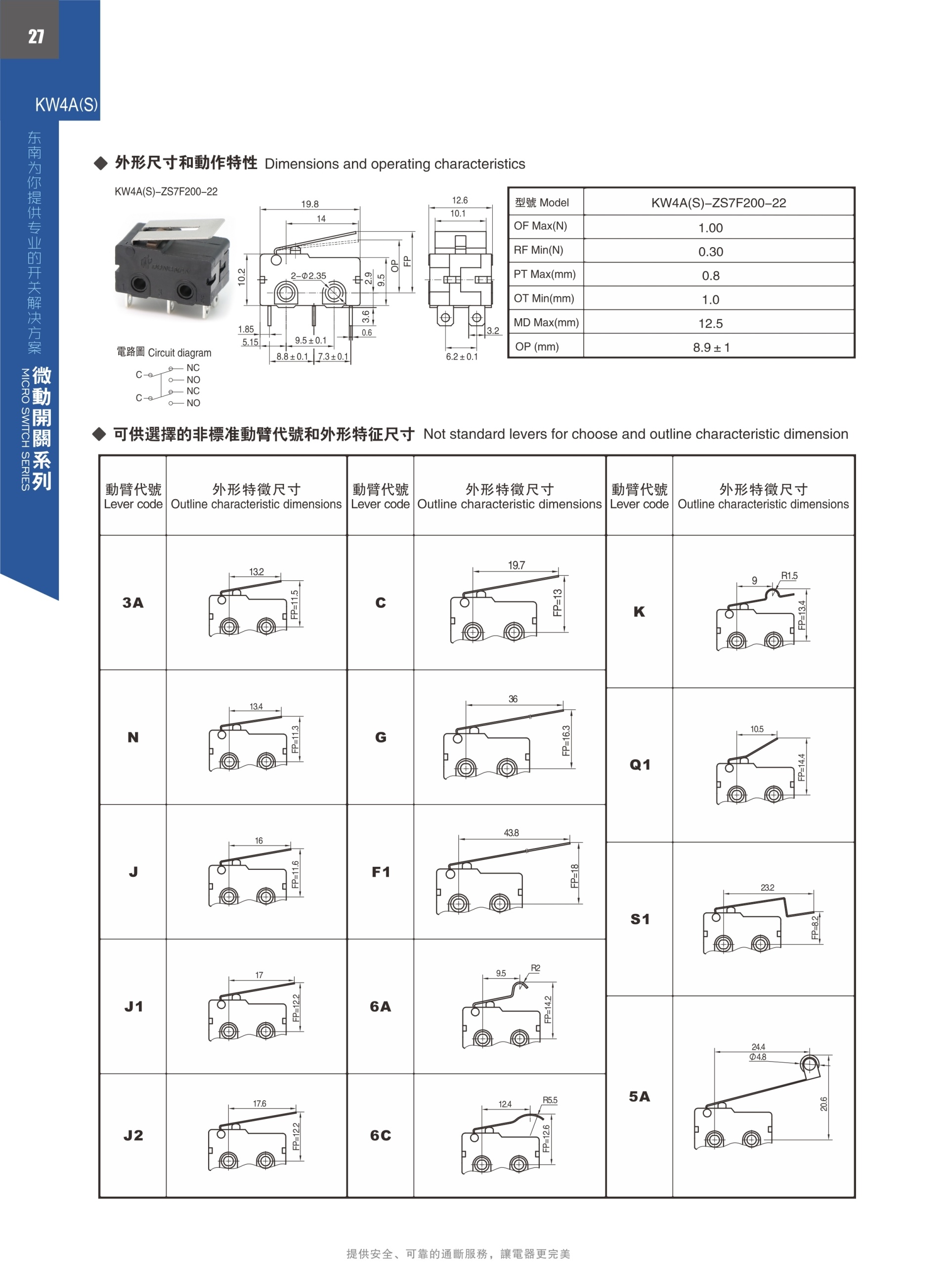

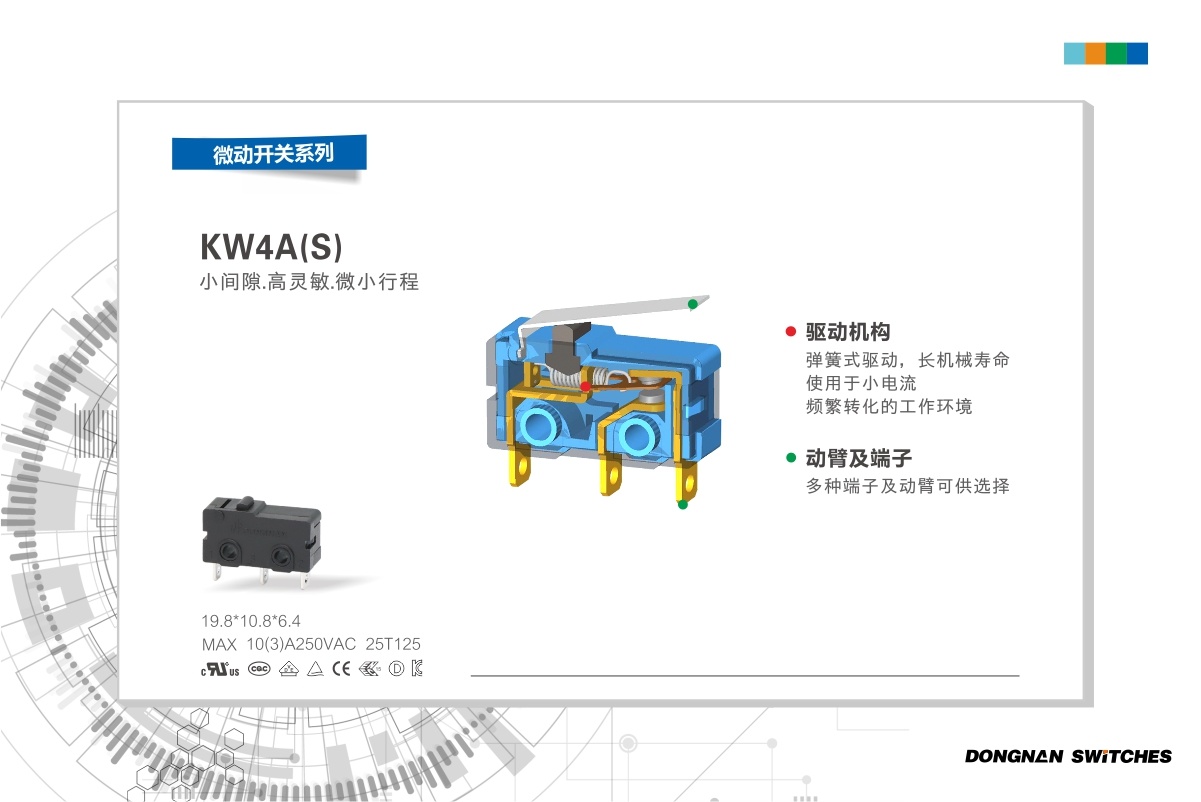

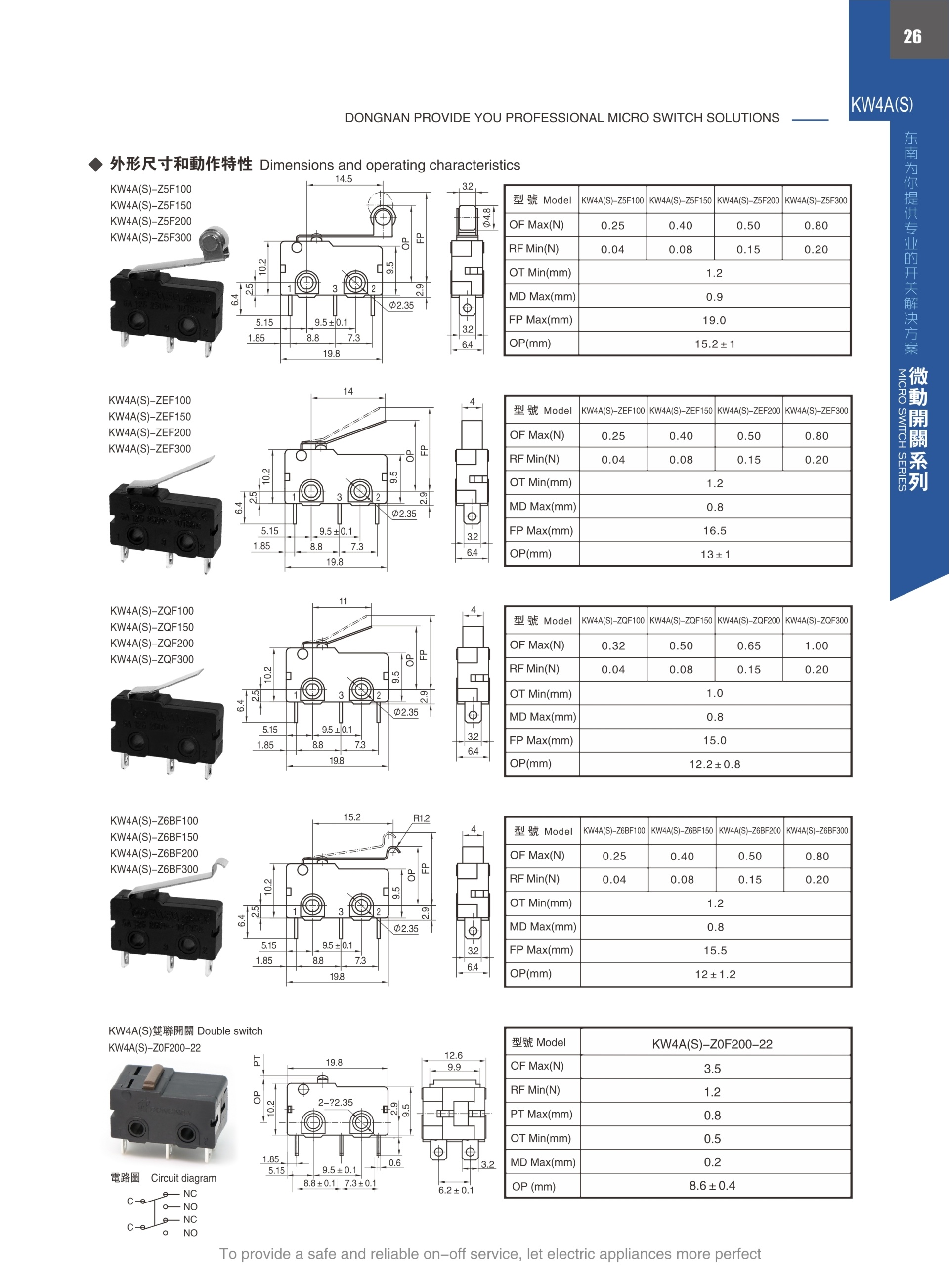

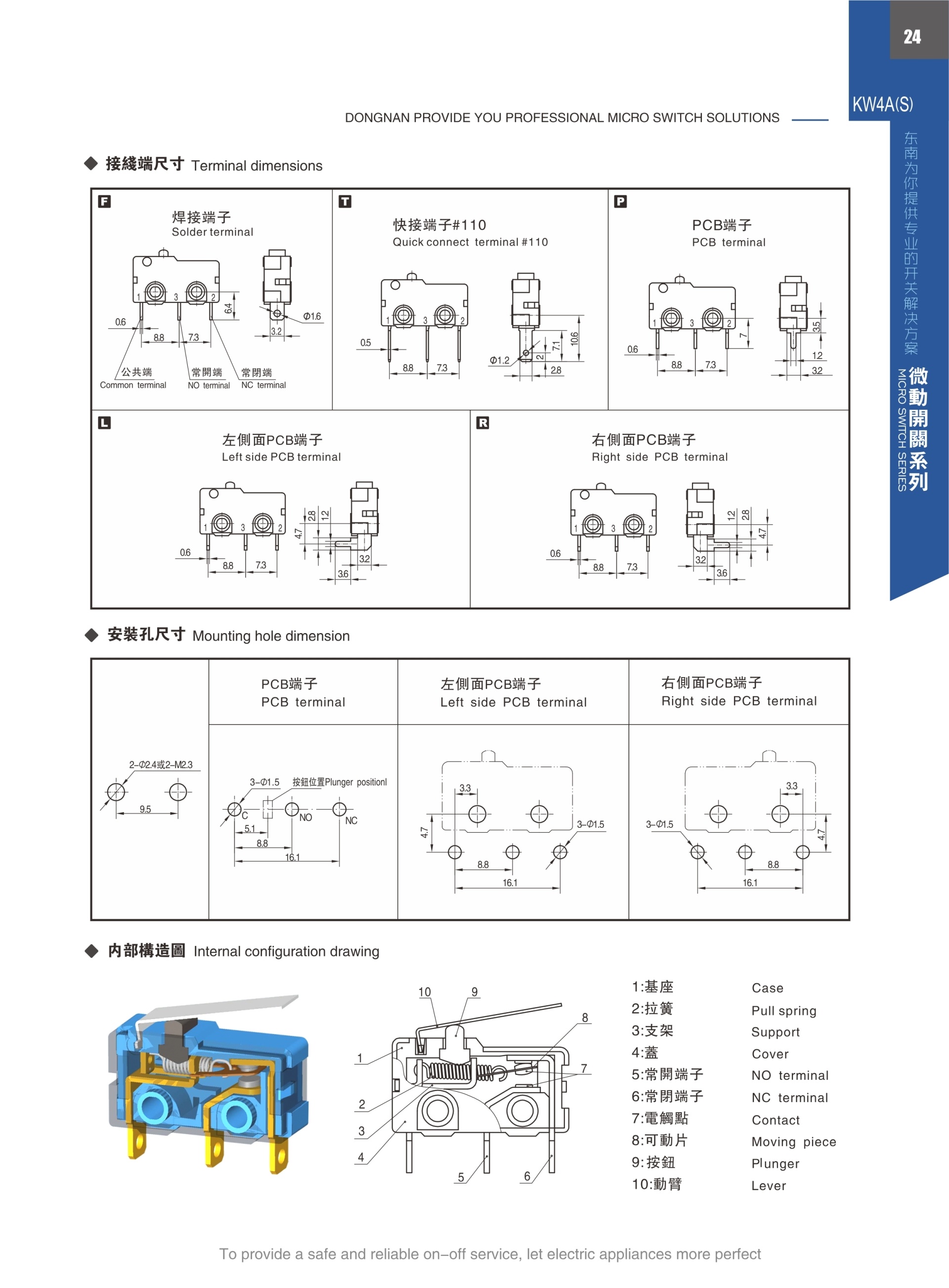

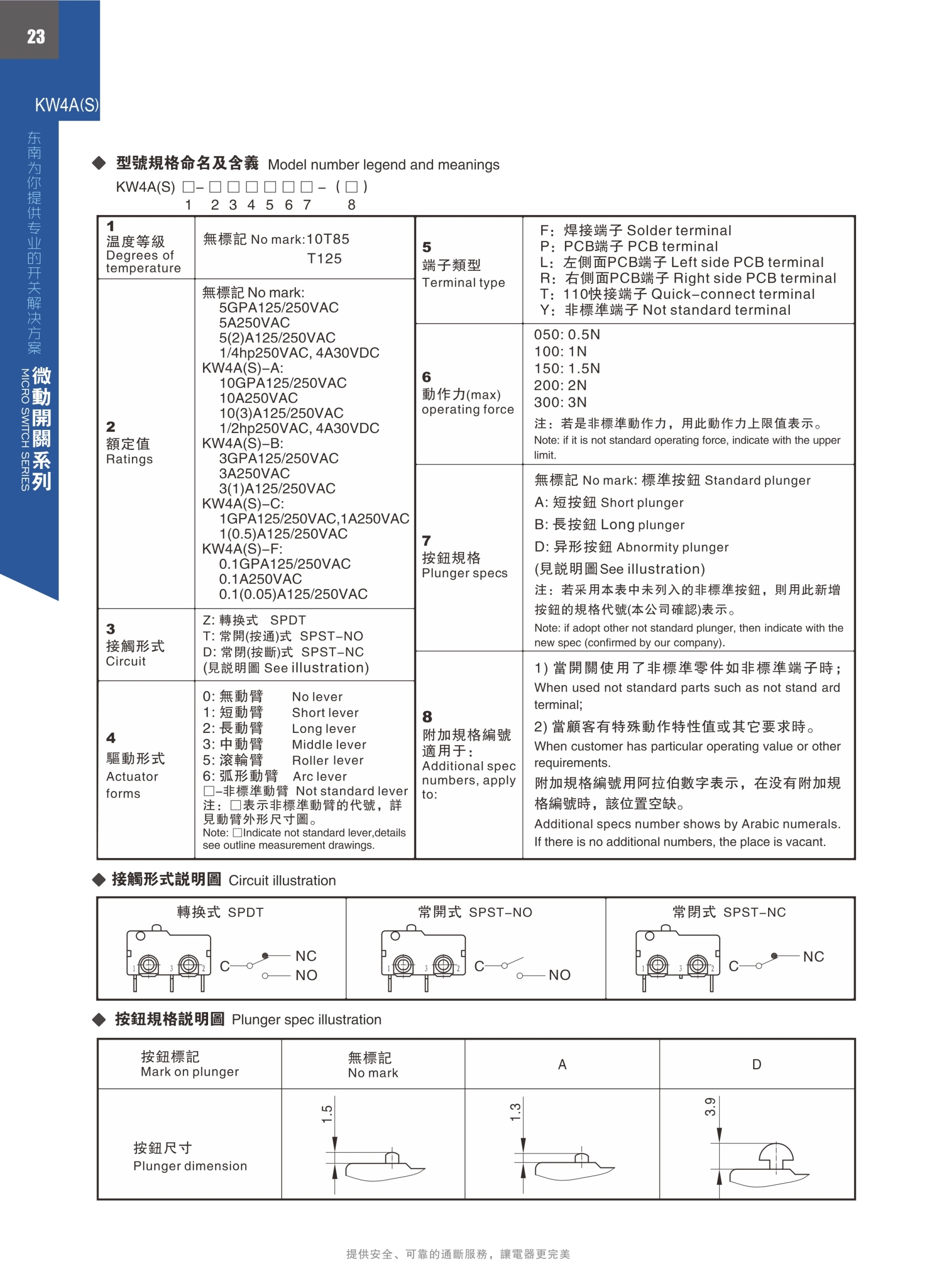

    KW4A(S) Micro Switch Miniature Snap Action SPDT with Metal Lever


    1.Product Introduction
    This KW4A(S) micro switch is a ordinary miniature type snap action SPDT micro witch. It can be equipped with various metal levers. We have been diving into manufacturing micro switches for many years. There are already several types of micro switches. Welcome to buy our micro switch.



    2.Product Parameter

    Item

    Value

    Operating speed

    0.1mm~1m/s (Related with actuator forms)

    Operating frequency

    Mechanical 60 cycles/min; electrical 25 cycles/min

    Insulation resistance

    ≥ 100MΩ(500VDC)

    Contact resistance

    OF>0.5N:≤30mΩ
    OF≤0.5N:≤50mΩ

    (Test voltage) Between terminals of the same polarity

    AC1000V , 50/60Hz , 1min

    (Test voltage) Between current-carrying metal parts and Ground(case), and between each terminal and non-current-carrying  metal  parts.

    AC1500V , 50/60Hz , 1min

    Vibration resistance

    10~55Hz , 1.5mm Double  amplitude

    Shock resistance

    Destruction:OF>0.5N:1000m/s2(approx.100G)max
                        OF≤0.5N:500m/s2(approx.50G)max
    Malfunction:OF>0.5N:300m/s2(approx.30G)max
                      OF≤0.5N:200m/s2(approx.20G)max

    Weight

    Approx.1.6g(No lever)

    Life

    Mechanical ≥ 1,000,000 cycles
    Electrical ≥ 10,000 cycles
    Electrical ≥ 50,000 cycles(TUV, CQC)

    Safety approvals

    UL,CUL,VDE,TUV,ENEC,SEMKO,DEMKO,CE,EK,CQC



    3.Product Feature and Application
    KW4A(S) Dongnan micro switch is an excellent quality switch for long service life, safety and reliability. It is mainly suitable for air-conditioners, hairdryers, electric heaters and other equipment. This micro lever switch comes in various forms of lever, such as no lever, short lever, long lever and so on. To meet the customers' different needs, we can also make customisation and adjustments. The switch is made of high quality materials with good durability and stability to ensure safe use. The compact design is easy to install and can be used flexibly in limited space. The micro switch is also easy to operate and comfortable to touch, giving users a good experience.
