MS2 microswitch

1. It has a certain protective function.
2. Widely used in various household appliances, and can be used for vacuum cleaners and other appliances with harsh working environments.

所属分类:

MS2 micro Switch

关键词: MS2 microswitch

产品附件:


在线留言
  • Description
  • Product Parameters
  • Video
    • Commodity name: MS2 microswitch

    1. It has a certain protective function.<br>2. Widely used in various household appliances, and can be used for vacuum cleaners and other appliances with harsh working environments.

    MS2 Micro Switch Dustproof Specially Designed for Medical Bed and Vacuum Cleaner

    1.Product Introduction
    MS2 micro switch is customized for medical bed and vacuum cleaner. Special dustproof design avoids dusty environments. Dongnan Electronics will be strictly tested before leaving the factory, from the source to control the quality of each component, and the samples are tested several times. Our dongnan micro switch price is competitive, if you need a quote,please let us know.

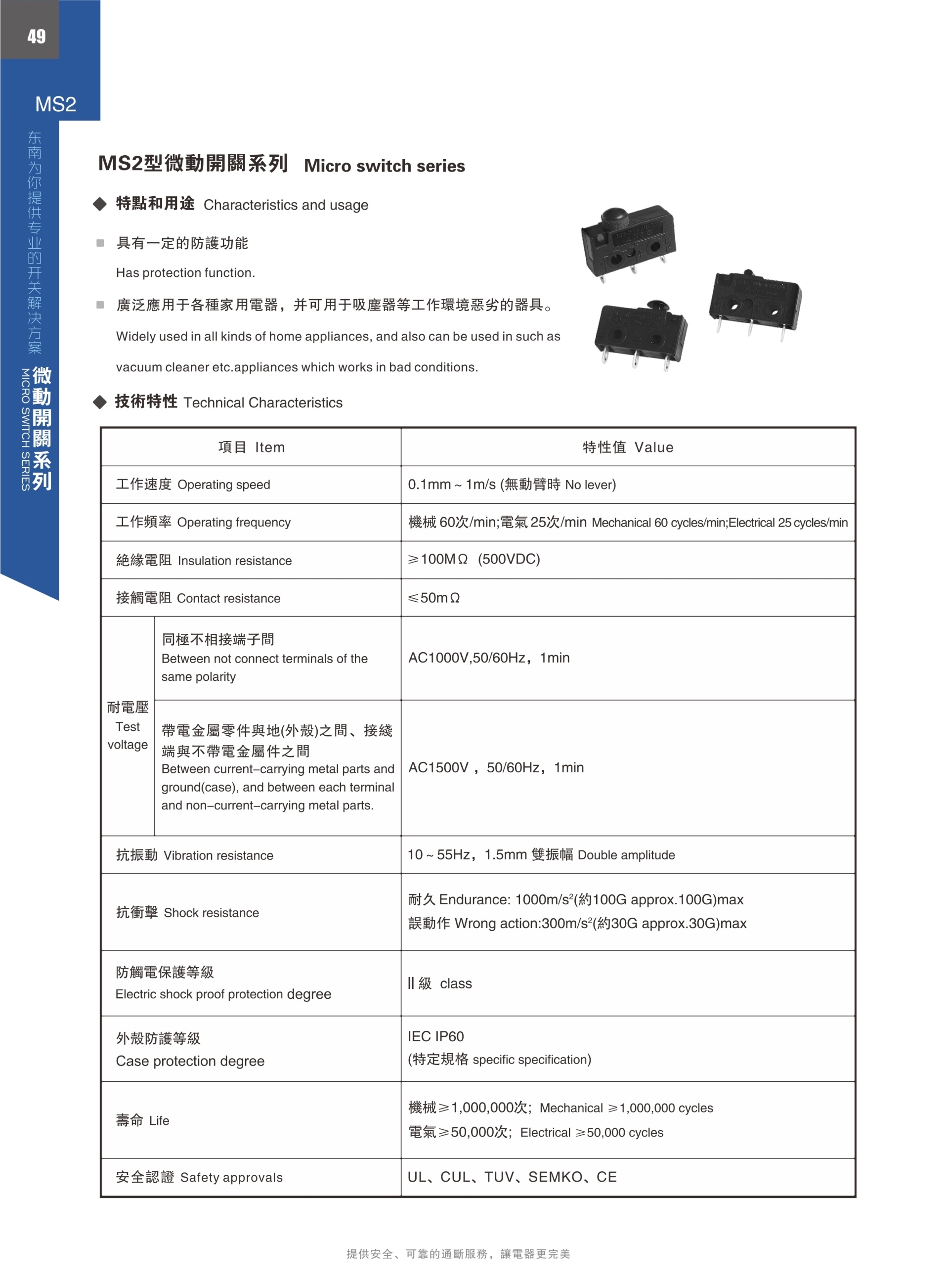

    2.Product Parameter

    Item

    Value

    Operating speed

    0.1mm~1m/s (No lever)

    Operating frequency

    Mechanical 60 cycles/min; electrical 25 cycles/min

    Insulation resistance

    ≥ 100MΩ(500VDC)

    Contact resistance

    ≤50mΩ

    (Test voltage) Between terminals of the same polarity

    AC1000V , 50/60Hz , 1min

    (Test voltage) Between current-carrying metal parts and Ground(case), and between each terminal and non-current-carrying  metal  parts.

    AC1500V , 50/60Hz , 1min

    Vibration resistance

    10~55Hz , 1.5mm Double  amplitude

    Shock resistance

    Endurance:1000m/s2(approx.100G)max
    Wrong action:300m/s2(approx.30G)max

    Electric shock proof protection degree

    II class

    Case protection degree

    IEC IP60(specific specification)

    Life

    Mechanical ≥ 1,000,000 cycles
    Electrical ≥ 50,000 cycles

    Safety approvals

    UL,CUL,,TUV,SEMKO,CE



    3.Product Feature and Application
    MS2 custom dongnan micro switch is designed for equipment such as vacuum cleaner and medical beds and other harsh working environments.This micro switch is resistant to dust and other contaminants, ensuring long-lasting, reliable performance. It is also vibration-resistant to maintain excellent switching performance in vibrating environments.
