MS10 Long Life Micro Switch

1. Long life and high reliability.
2. Stable performance with low action force.
3. Complete terminal types.
4. Multiple temperature grades.
5. Equipped with various forms of boom.

Category:

MS10 Micro Switch

Keyword: MS10 Long Life Micro Switch

Accessories:


Message
  • Description
  • Product Parameters
  • Video
    • Commodity name: MS10 Long Life Micro Switch

    1. Long life and high reliability.<br>2. Stable performance with low action force.<br>3. Complete terminal types.<br>4. Multiple temperature grades.<br>5. Equipped with various forms of boom.

    MS10 Micro Switch Simple Double Support Pint with Reset Spring



    1.Product Introduction
    The MS10 micro switch has a simple dual support point design with stable travel characteristics.It has a reset spring that acts directly on the button and resets quickly. Dongnan micro switch supplier is committed to producing more and better Micro Switch for consumers. If you are intended in the business of micro switch, you can contact with us for consultation.

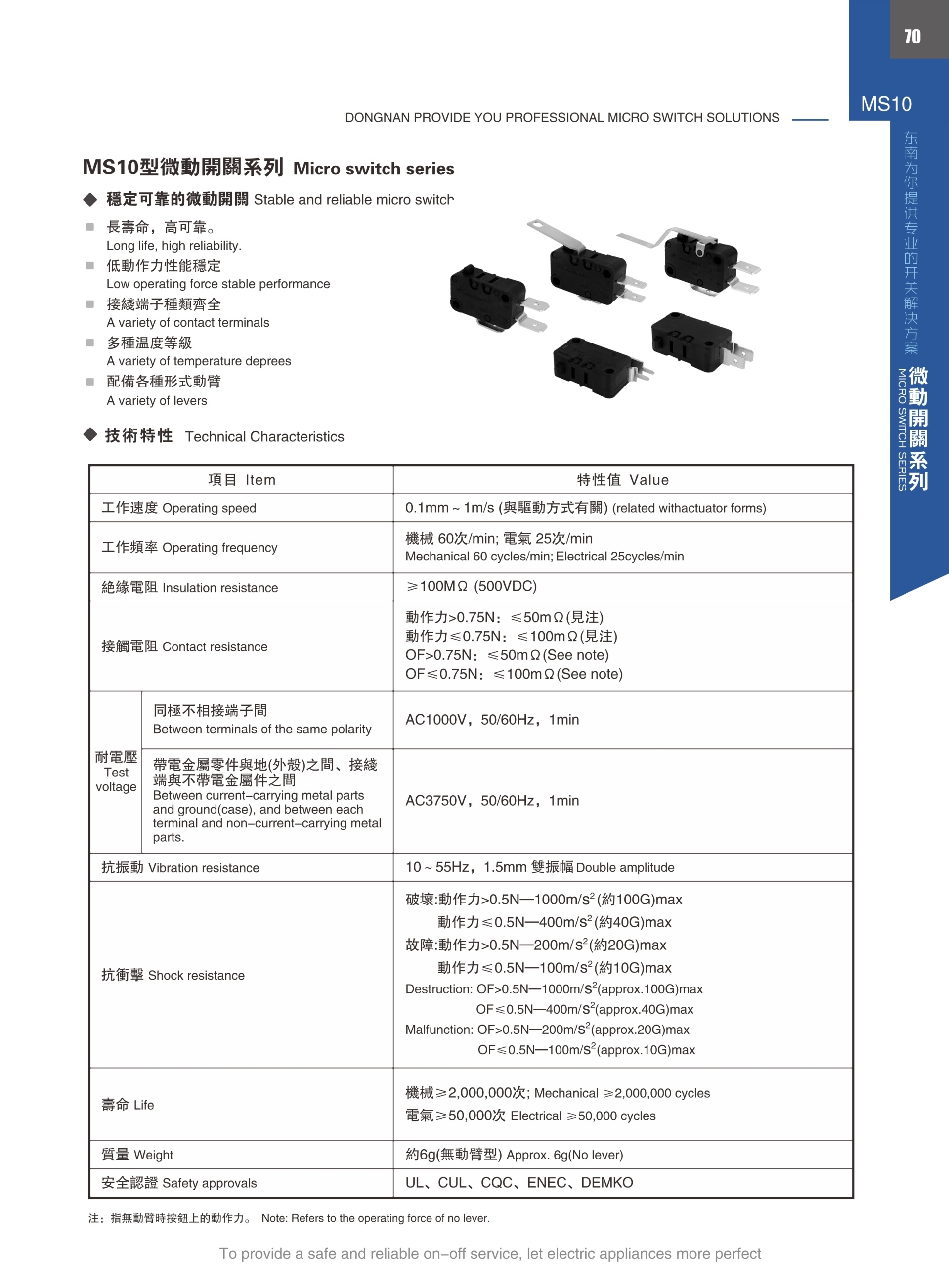

    2.Product Parameter

    Item

    Value

    Operating speed

    0.1mm-1m/s(No lever)

    Operating Frequency

    Mechanical 60 cycle/min; Electrical 25 cycles/min

    Insulation resistance

    ≥ 100MΩ(500VDC)

    Contact resistance

    OF>0.75N:≤50mΩ
    OF≤0.75N:≤100mΩ

    (Test voltage) Between terminals of the same polarity

    AC1000V,50/60Hz,1min

    (Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-cueeent-carrying metal parts.

    AC3750V,50/60Hz,1min

    Vibration resistance

    10-55Hz,1.5mm Double amplitude

    Shock resistance

    Destruction:OF>0.5N-1000m/s2(approx.100G)max
                        OF≤0.5N-400m/s2(approx.40G)max
    Malfunction:OF>0.5N-200m/s2(approx.20G)max
                      OF≤0.5N-100m/s2(approx.10G)max

    Weight

    Approx.6g(No lever)

    Llife

    Mechanical ≥ 2,000,000 cycles
    Electrical ≥ 50,000 cycles

    Safety approvals

    UL,CUL,,ENEC,DEMKO,CQC



    3.Product Feature and Application

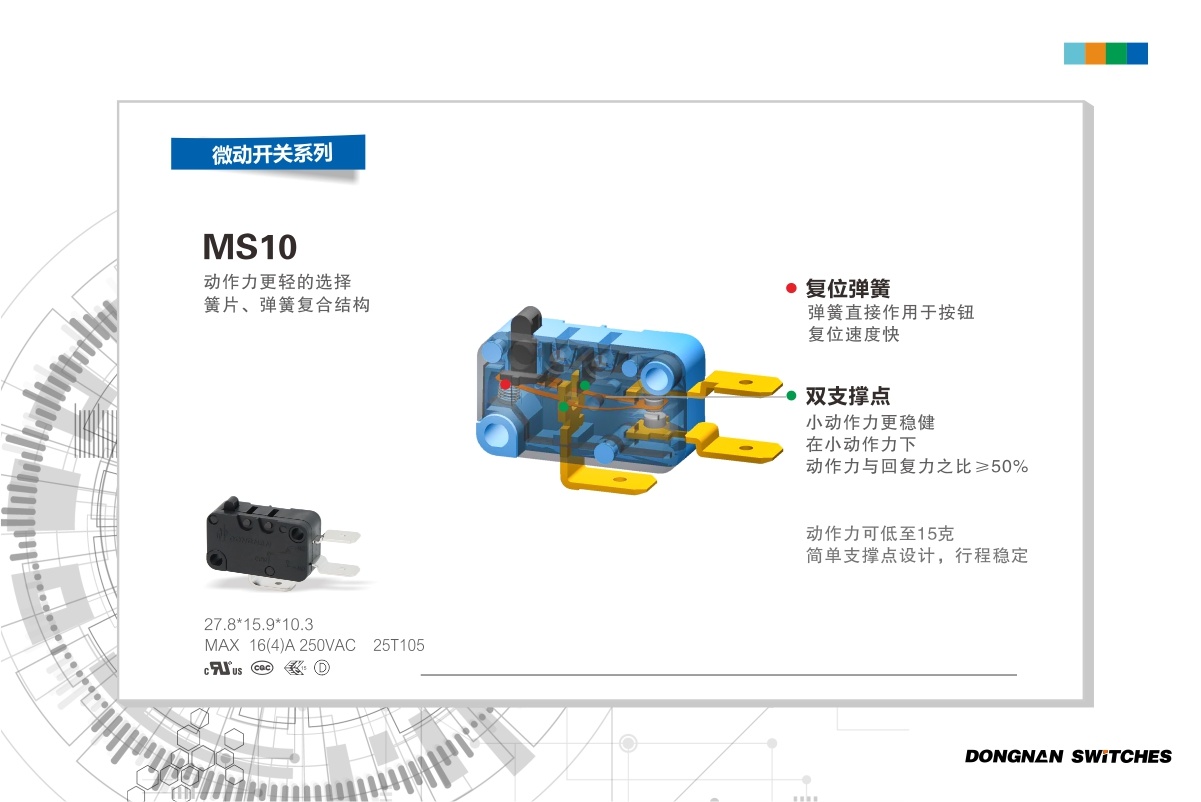

    The MS10 snap action micro switch features a simple double support point design that gives it stable travel characteristics. This design not only ensures the stability of the switch, but also maintains high quality performance over long periods of use. This micro pressure switch is also fitted with a reset spring which acts directly on the pushbutton, allowing for a faster reset. This means that the user can reset the switch more quickly, resulting in more efficient use of the device.
