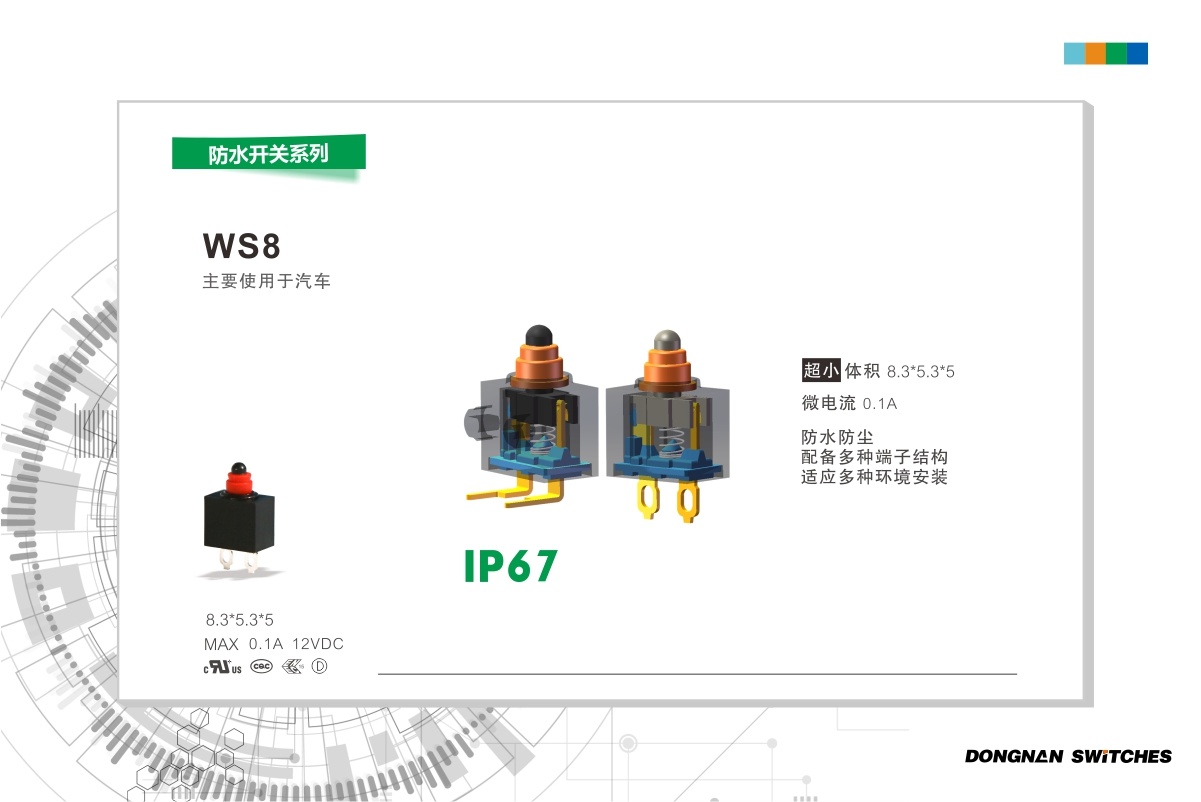

WS8 car door waterproof micro switch

Features and Uses
1. Industry products are the smallest, dustproof and waterproof. Adopting double-sided sliding contact structure, reliable contact and strong impact resistance.
2. The enclosure is available with no column, one-sided and two-sided columns to meet different installation requirements.
3.WS8 car door waterproof micro switch terminal range, can be equipped with the load requirements of the wire
4 4. Can be used in the car side door, trunk, hood and white goods.

所属分类:

WS8 Waterproof Switch

关键词: WS8 car door waterproof micro switch

产品附件:


在线留言
  • Description
  • Product Parameters
  • Video
    • Commodity name: WS8 car door waterproof micro switch

    Features and Uses<br>1. Industry products are the smallest, dustproof and waterproof. Adopting double-sided sliding contact structure, reliable contact and strong impact resistance.<br>2. The enclosure is available with no column, one-sided and two-sided columns to meet different installation requirements.<br>3.WS8 car door waterproof micro switch terminal range, can be equipped with the load requirements of the wire<br>4 4. Can be used in the car side door, trunk, hood and white goods.

    WS8 Waterproof Switch Dustproof Strong Impact Resistance with Smallest Size



    1.Product Introduction
    WS8 waterproof switch is the smallest size in microswitch industrical fields. It has dustproof function and strong impact resistance. We are a waterproof micro switch exporter in China and our waterproof switch is widely used in automobile fileds. If you need car waterproof switch, please contact us.



    2.Product Parameter

    Item

    Value

    Environment temperature

    -40-+85°C

    Relative humidity

    95%,45°C

    Ratings

    0.1A 12VDC ;50μA 5V DC

    Operating speed

    1mm~500mm/s (no lever)

    Operating frequency

    Mechanical 60 cycles/min; electrical 25 cycles/min

    Insulation resistance

     ≥100MΩ(500VDC)

    Contact resistance

     ≤ 50mΩ

    (Test voltage) Between terminals of the same polarity

    AC500V , 50/60Hz , 1min

    (Test voltage) Between current-carrying metal parts and ground(case),and between each terminal and non-current-carrying metal parts

    AC500V , 50/60Hz , 1min

    Vibration resistance

    10~55Hz , 1.5mm Double  amplitude

    Shock resistance

    Min:294m/s2(30G)
    1ms Contact opening max. 1msec.

    Electric shock proof protection grade

    I class

    Case protection degree

     IEC IP67(Except exposed terminals)

    Life

    Mechanical  ≥ 300,000 cycles
    Electrical ≥ 300,000 cycles

    Safety approvals

    UL ,TUV,CQC



    3.Product Feature and Application
    The WS8 waterproof micro switch is compact and has one of the smallest footprints in the industry, making it ideal for installations where space is at a premium. Equipped with a variety of terminals and wires for all your wiring needs, this switch offers you versatility and convenience.

    The WS8 waterproof micro switch 12V is suitable for use in automobiles and ensures reliable operation in vehicles. Its rugged construction allows it to withstand the demands of various environments.
