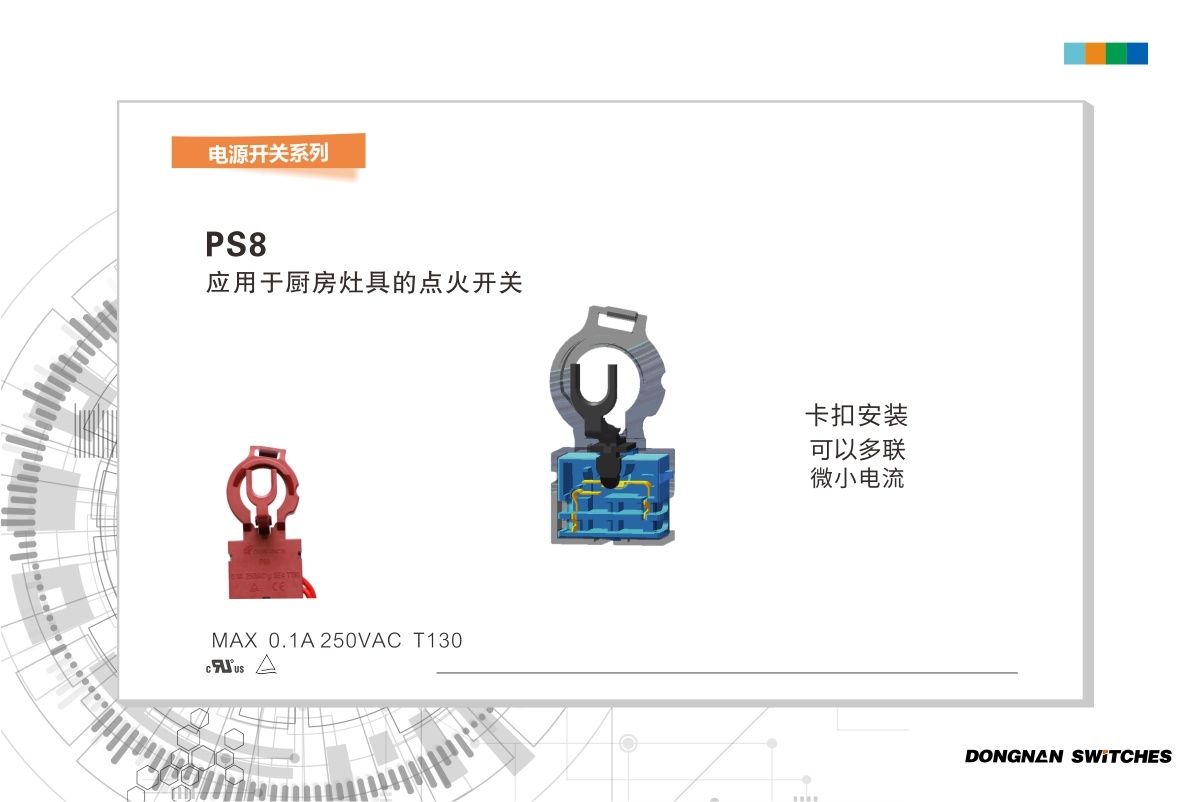

PS8 household appliances gas stove ignition switch
2. Easy to install
3. Can multiple small currents
Category:
PS8 Button Switch
Keyword: PS8 household appliances gas stove ignition switch
Accessories:
Message
- Description
- Product Parameters
- Video
-
- Commodity name: PS8 household appliances gas stove ignition switch
1.PS8 power switch can be used for the ignition switch of kitchen stove.<br>2. Easy to install<br>3. Can multiple small currents
PS8 Button Switch Snap-in Type Multiple Connections with Simple Structure

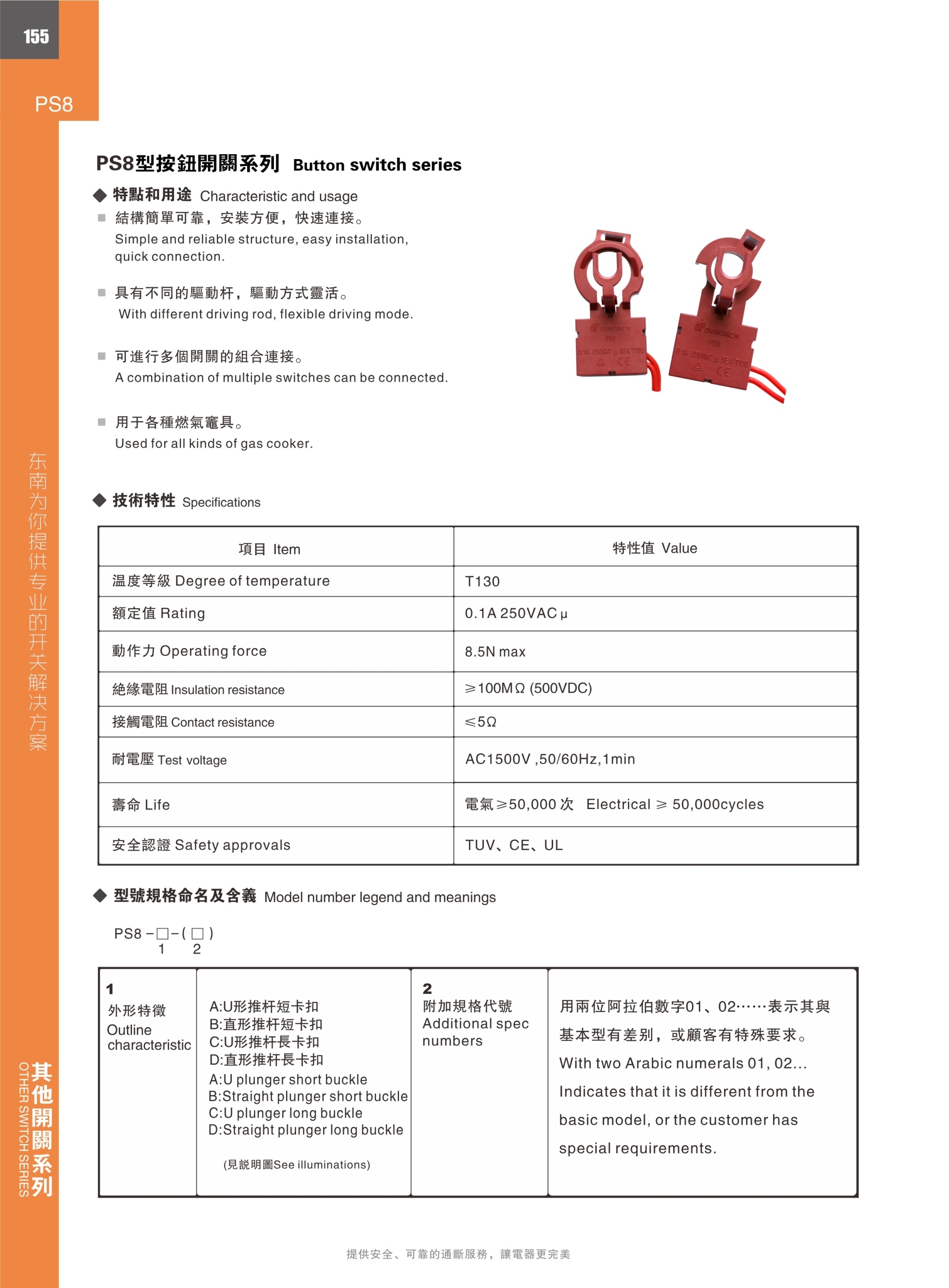

1.Product Introduction
PS8 button switch is snap-in type and simple structure for more safety. A combination of multiple swithes can be connected. We have been working on and producing micro switch since 1987. We are looking forward to working with you.2.Product Parameter
Item
Value
Degree of temperature
T130
Rating
0.1A250VACμ
Operating force
8.5N max
Insulation resistance
≥ 100MΩ(500VDC)
Contact resistance
≤ 5Ω
Test voltage
AC1500V,50/60Hz,1min
Life
Electrical≥50,000 cycles
Sofety approavals
TUV, CE , UL
3.Product Feature and Application
PS8 button switch that is a kind of switch with simple structure and easy installation. The micro switch button is snap-in mounted, which is not only easy to operate, but also can control the gas cooker stably. It is equipped with different driving rod and flexible driving mode, and can be used for gas cookers.Key words:- 电源开关
- 电源开关
- PS8煤气灶点火开关
-
