PS9 push button switch
所属分类：
PS9 Button Switch
关键词： PS9 push button switch
产品附件：
在线留言
- Description
- Product Parameters
- Video
-
- Commodity name: PS9 push button switch
Features and uses Long life, high reliability, stable and reliable contact; widely used in household appliances, refrigerators and lighting.

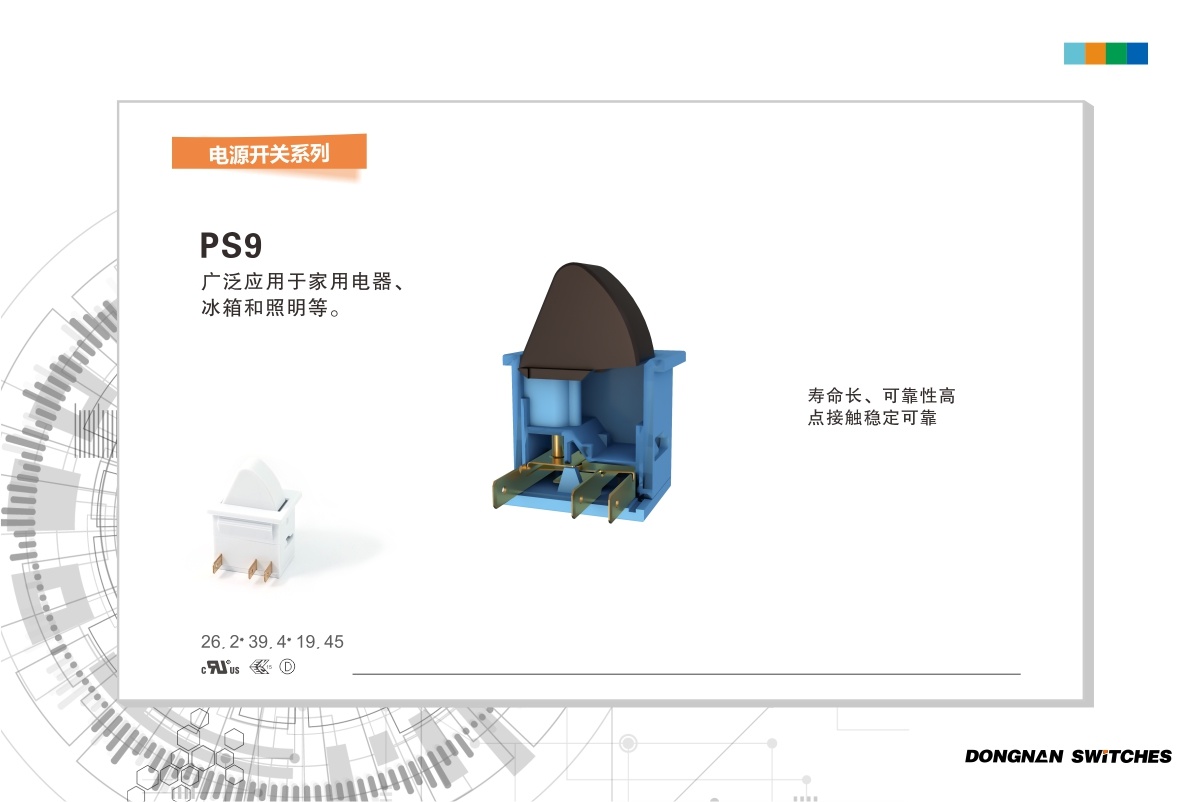

PS9 Button Switch Long life High Reliability for Refrigerators and Lighting
1.Product Introduction
PS9 button switch specializes in refrigerators and lighting. It has reliable contact. We are a professional micro switch company with much experience in exporting. Any inquiry, please contact us.2.Product Parameter
Item
Value
Environment temperature
-40~+85ºC
Operating speed
30mm~600mm/s
Operating Frequency
Mechanical 60cycles/min; Electrical 15 cycles/min
Insulation resistance
≥ 100MΩ(500VDC)
Contact resistance
≤ 50mΩ
(Test voltage) Between terminals of the same Polarity.
AC1000v , 50/60Hz , 1min
(Test voltage) Between current-cattying metal parts and ground(case), and between each terminal and non-current-carrying metal parts.
AC1500v , 50/60Hz , 1min
Vibration resistance
10~55Hz , 1.5mm Double amplitude
Shock resistant
Endurance:1000m/s2(approx.100G)max
Wrong action:300m/s2(approx.30G)maxCover protection degree
IEC IP54
Electrical life
≥50,000 cycles
Mechanical life
≥500,000 cycles
3.Product Feature and Application
PS9 button switch is a kind of switch with long service life and high reliability. With its stable and reliable contacts, this micro switch button is widely used in areas such as refrigerators and lighting. The pushbutton switch is produced with high-quality materials that can withstand high-frequency switching operations, thus ensuring a long service life. In addition, PS9 button switches have excellent stability and are able to work in a variety of harsh environments.
-
