- Since 1987,We focus on switches -
KW3A-G drying rack micro switch
small size, suitable for all angles of random installation
product structure is simple, easy to install and disassemble
所属分类：
KW3A-G Micro Switch
关键词： KW3A-G drying rack micro switch
产品附件：
在线留言
- Description
- Product Parameters
- Video
-
- Commodity name: KW3A-G drying rack micro switch
KW3A-G type drying rack micro switch rental<br>small size, suitable for all angles of random installation<br>product structure is simple, easy to install and disassemble

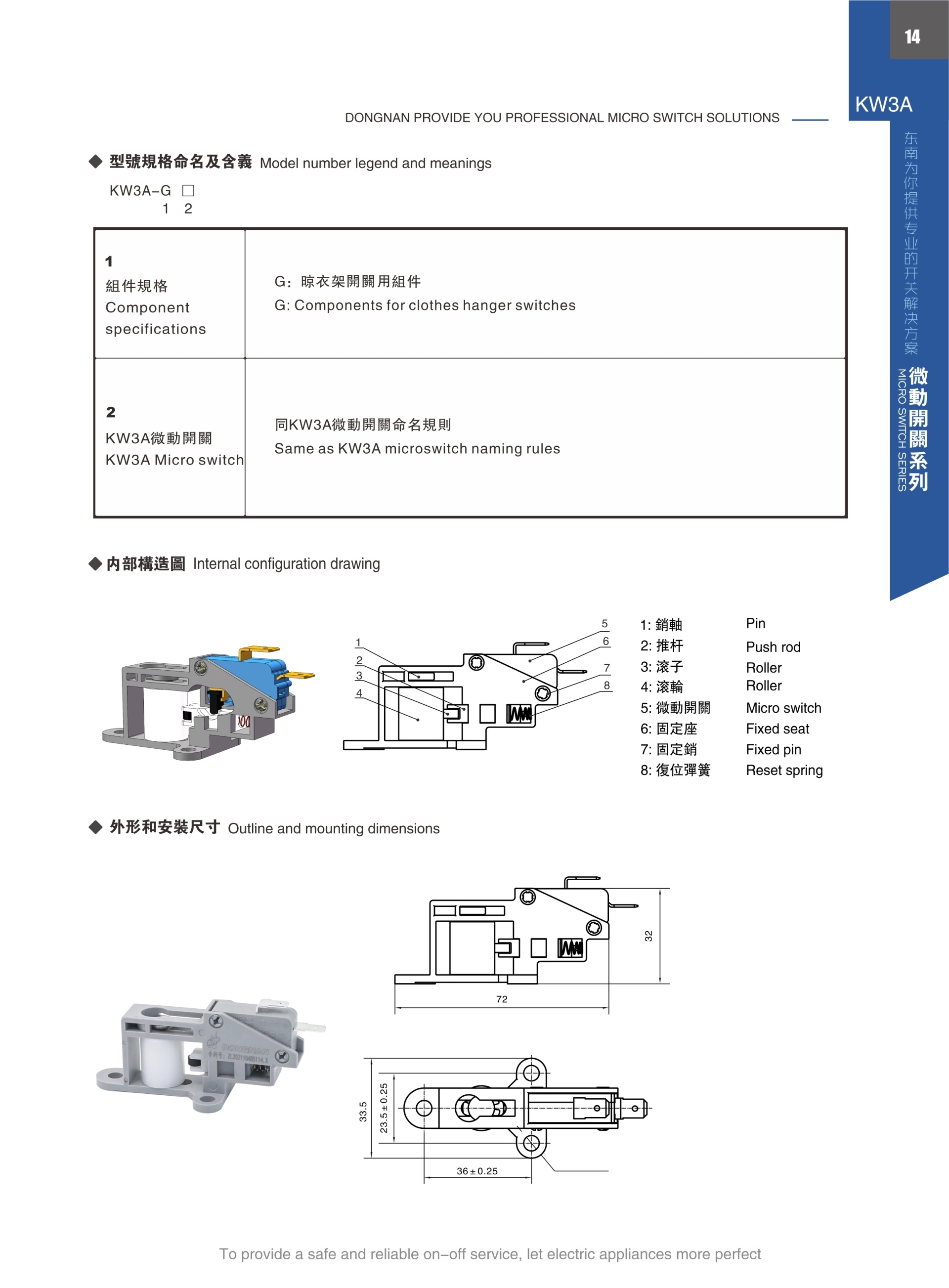

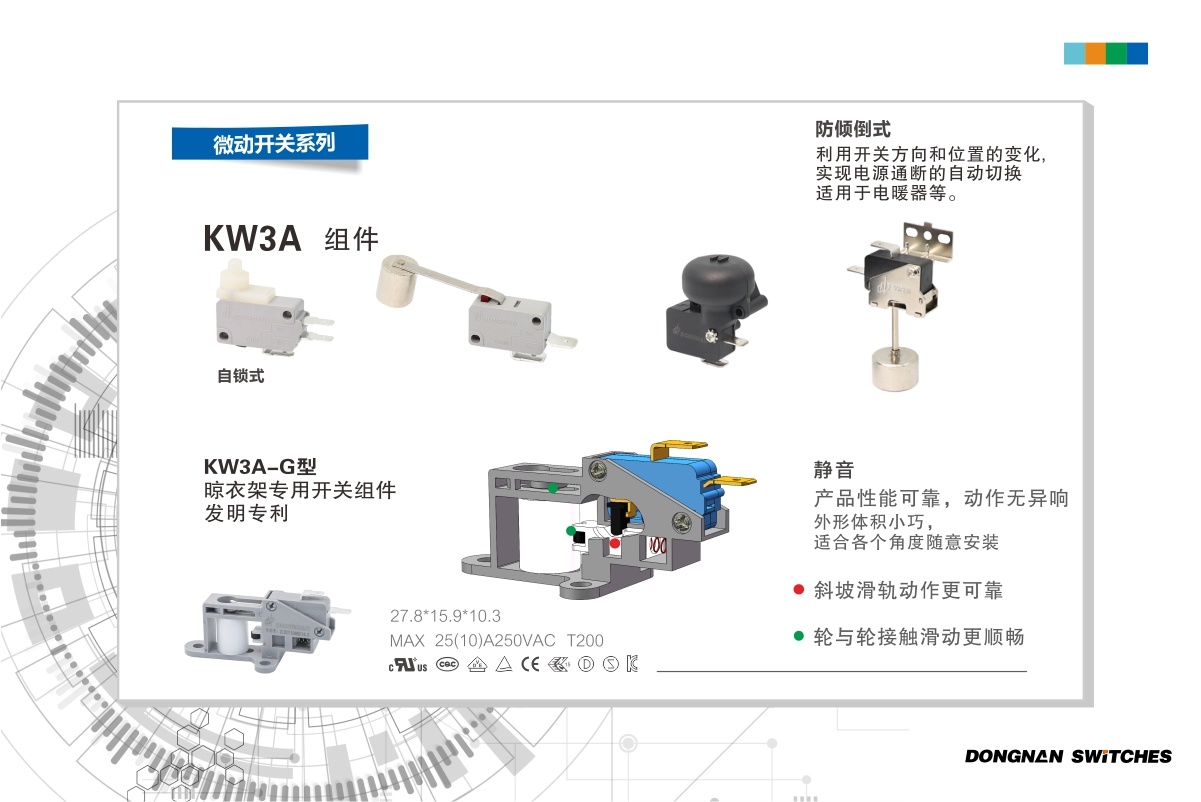

KW3A-G Micro Switch UL Small Size Clothes Hanger Switch with Patent
1.Product Introduction
Small size KW3A-G Micro switch is based on the KW3A switch, derived from the manufacture of special switches for clothes hanger. This switch had a patent and passed the UL certification. We are switch manufacturer with dongnan micro switch agencies in many places and have advanced standardized production equipment, high precision manufacturing and processing equipment, and professional testing laboratory.We hope to establish business relationship with you.

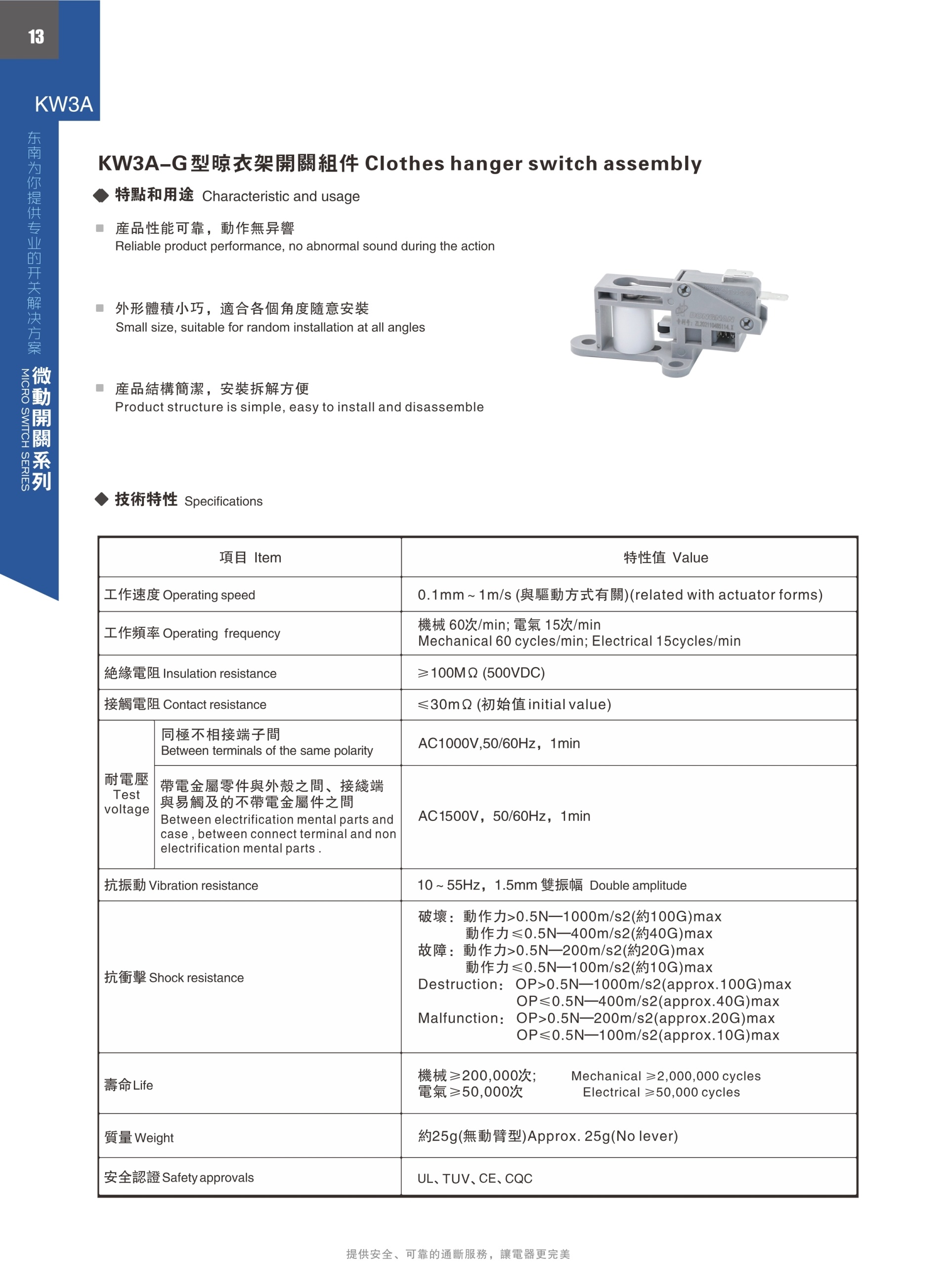

2.Product ParameterItem
Value
Operating speed
0.1mm~1m/s (Rated with actuator forms)
Operating frequency
Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance
≥ 100MΩ(500VDC)
Contact resistance
≤30mΩ(Initial value)
(Test voltage) Between terminals of the same polarity
AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-cueeent-carrying metal parts. .
AC1500V , 50/60Hz , 1min
Vibration resistance
10~55Hz , 1.5mm Double amplitude
Shock resistance
Destruction:OP>0.5N:1000m/s2(approx.100G)max
OP≤0.5N:400m/s2(approx.40G)max
Malfunction:OP>0.5N:200m/s2(approx.20G)max
OP≤0.5N:100m/s2(approx.10G)maxWeight
Approx.25g(No lever)
Life
Mechanical ≥ 2,000,000 cycles
Electrical ≥ 50,000 cyclesSafety approvals
UL,TUV,CE,CQC
3.Product Feature and Application
KW3A-G micro switch products are safe and reliable, with no abnormal noise in action. Compact size, suitable for installation at all angles. The product structure is simple, easy to install and disassemble.
-
