KW4B Household Appliances Micro Switch 125vAC 5E4
KW4B micro switches are widely used in household appliances, electronic equipment, automation equipment and similar equipment.
所属分类：
KW4B Micro Switch
关键词： KW4B Household Appliances Micro Switch 125vAC 5E4
产品附件：
在线留言
- Description
- Product Parameters
- Video
-
- Commodity name: KW4B Household Appliances Micro Switch 125vAC 5E4
Features and Uses<br>KW4B micro switches are widely used in household appliances, electronic equipment, automation equipment and similar equipment.
KW4B Micro Switch Can be Customized NO/NC with Metal Lever

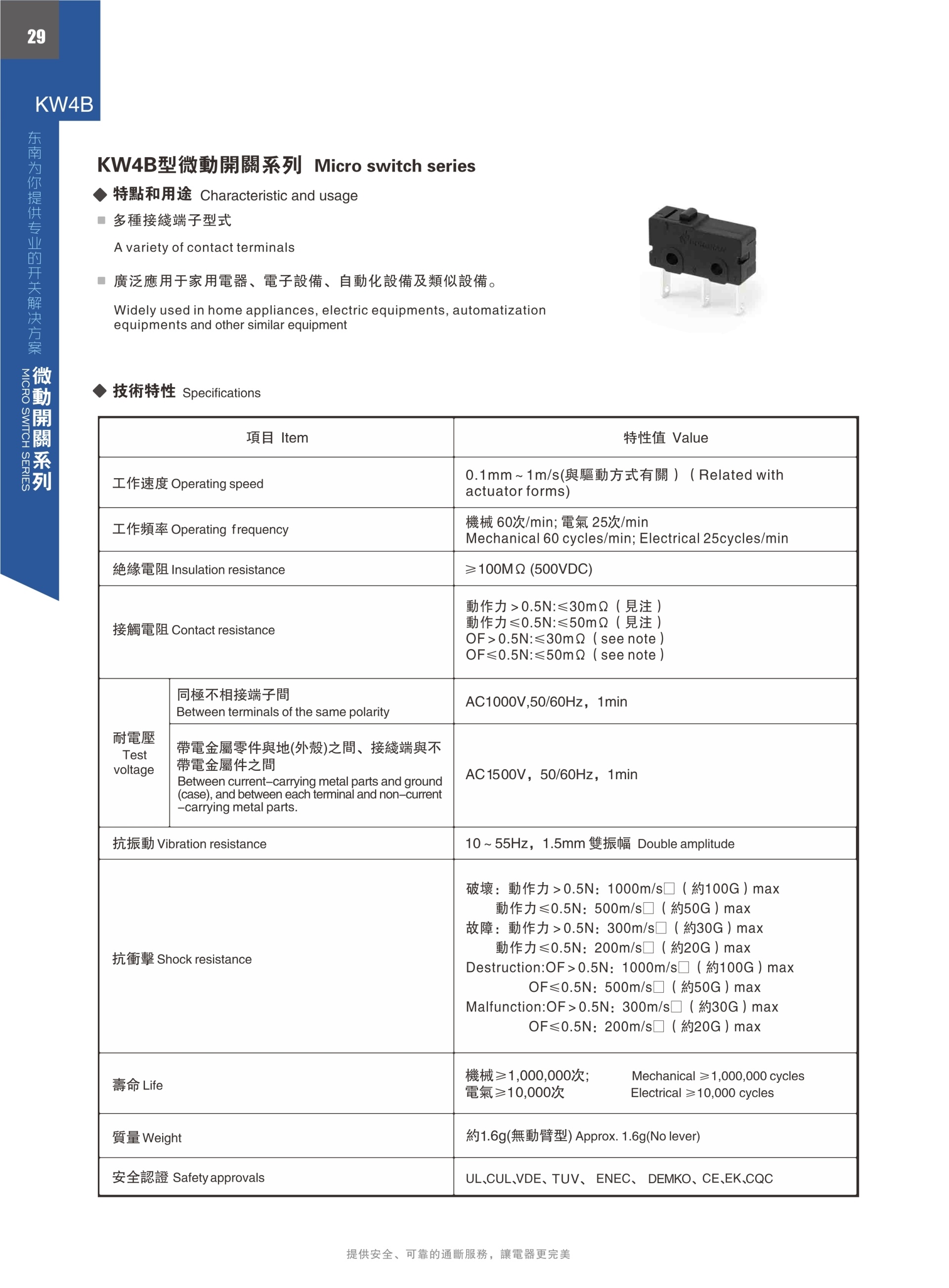

1.Product Introduction
KW4B micro switch is another series of Dongnan KW4A, which can be customised as normally open or normally closed depending on the type of circuit. It has a wide selection of metal levers. We are a switch manufacturer offering competitive products and satisfactory service to our customers. If you need to call our company directly, we will provide you with the equipment, we also welcome the majority of users to Dongnan Electronics Co., Ltd. field visits.2.Product Parameter
Item
Value
Operating speed
0.1mm~1m/s (Related with actuator forms)
Operating frequency
Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance
≥ 100MΩ(500VDC)
Contact resistance
OF>0.5N:≤30mΩ
OF≤0.5N:≤50mΩ(Test voltage) Between terminals of the same polarity
AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and Ground(case), and between each terminal and non-current-carrying metal parts.
AC1500V , 50/60Hz , 1min
Vibration resistance
10~55Hz , 1.5mm Double amplitude
Shock resistance
Destruction:OF>0.5N:1000m/s2(approx.100G)max
OF≤0.5N:500m/s2(approx.50G)max
Malfunction:OF>0.5N:300m/s2(approx.30G)max
OF≤0.5N:200m/s2(approx.20G)maxWeight
Approx.1.6g(No lever)
Life
Mechanical ≥ 1,000,000 cycles
Electrical ≥ 10,000 cycles
Electrical ≥ 50,000 cycles(TUV,CQC)Safety approvals
UL,CUL,VDE,TUV,SWMKO,ENEC,DEMKO,CE,EK,CQC
3.Product Feature and Application

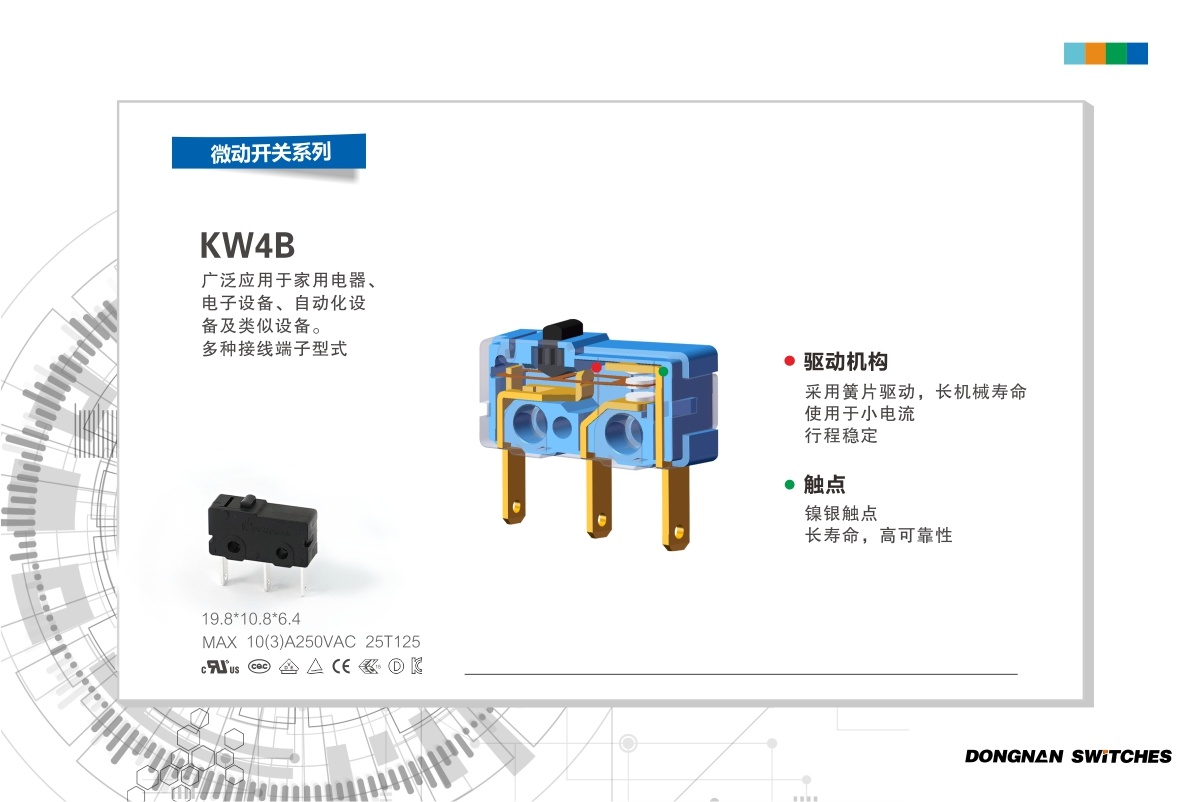

The KW4B Micro Switch is a high quality switch with a variety of terminal options. The switch features reed driver for long mechanical life and low operating current. Its consistent travel and high reliability make it ideal for a variety of applications including household appliances and electronic equipment.
-
