KW3A microswitch
2. Long life and high reliability. 3. Complete terminal types.
4. Wide range of action force.
5. Multiple temperature levels.
6. Equipped with various forms of boom.
7. Use thermosetting or thermoplastic.
8.KW3A microwave oven micro switch is widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, instrumentation, power tools and other fields.
所属分类：
KW3A Micro Switch
关键词： KW3A microswitch
产品附件：
在线留言
- Description
- Product Parameters
- Video
-
- Commodity name: KW3A microswitch
1. Beautiful appearance and compact structure. It has the characteristics of small contact gap, fast action, high sensitivity and small action stroke.<br>2. Long life and high reliability. 3. Complete terminal types.<br>4. Wide range of action force.<br>5. Multiple temperature levels.<br>6. Equipped with various forms of boom.<br>7. Use thermosetting or thermoplastic.<br>8.KW3A microwave oven micro switch is widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, instrumentation, power tools and other fields.
KW3A Micro Switch High Temperature Resistance with UL for Home Appliance
1.Product Introduction
KW3A micro switch is our highest selling basic switch with UL. It has the characteristics of high temperature resistance and long life, and can be applied to household appliances. We are a professional micro switch company and have independently developed a series of micro switches, waterproof switches and so on. If you want to buy dongnan kw3a switch, we hope we can cooperate together!
2.Product ParameterItem
Value
Operating speed
0.1mm~1m/s (Ralated with actuator forms)
Operating frequency
Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance
≥ 100MΩ(500VDC)
Contact resistance
OF>0.75N:≤50mΩ
OF≤0.75N:≤100mΩ (initial value)(Test voltage) Between terminals of the same polarity
AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and Ground(case), and between each terminal and non-current-carrying metal parts.
AC3750V , 50/60Hz , 1min
Vibration resistance
10~55Hz , 1.5mm Double amplitude
Shock resistance
Destruction:OF>0.5N:1000m/s2(approx.100G)max
OF≤0.5N:400m/s2(approx.40G)max
Malfunction:OF>0.5N:200m/s2(approx.20G)max
OF≤0.5N:100m/s2(approx.10G)maxWeight
Approx.6.2g(No lever)
Life
Mechanical ≥ 2,000,000 cycles
Electrical ≥ 50,000 cyclesSafety approvals
UL,CUL,VDE,ENEC,SEMKO,DEMKO,NEMKO,FLMKO,
CE,EK,CQC3.Product Feature and Application

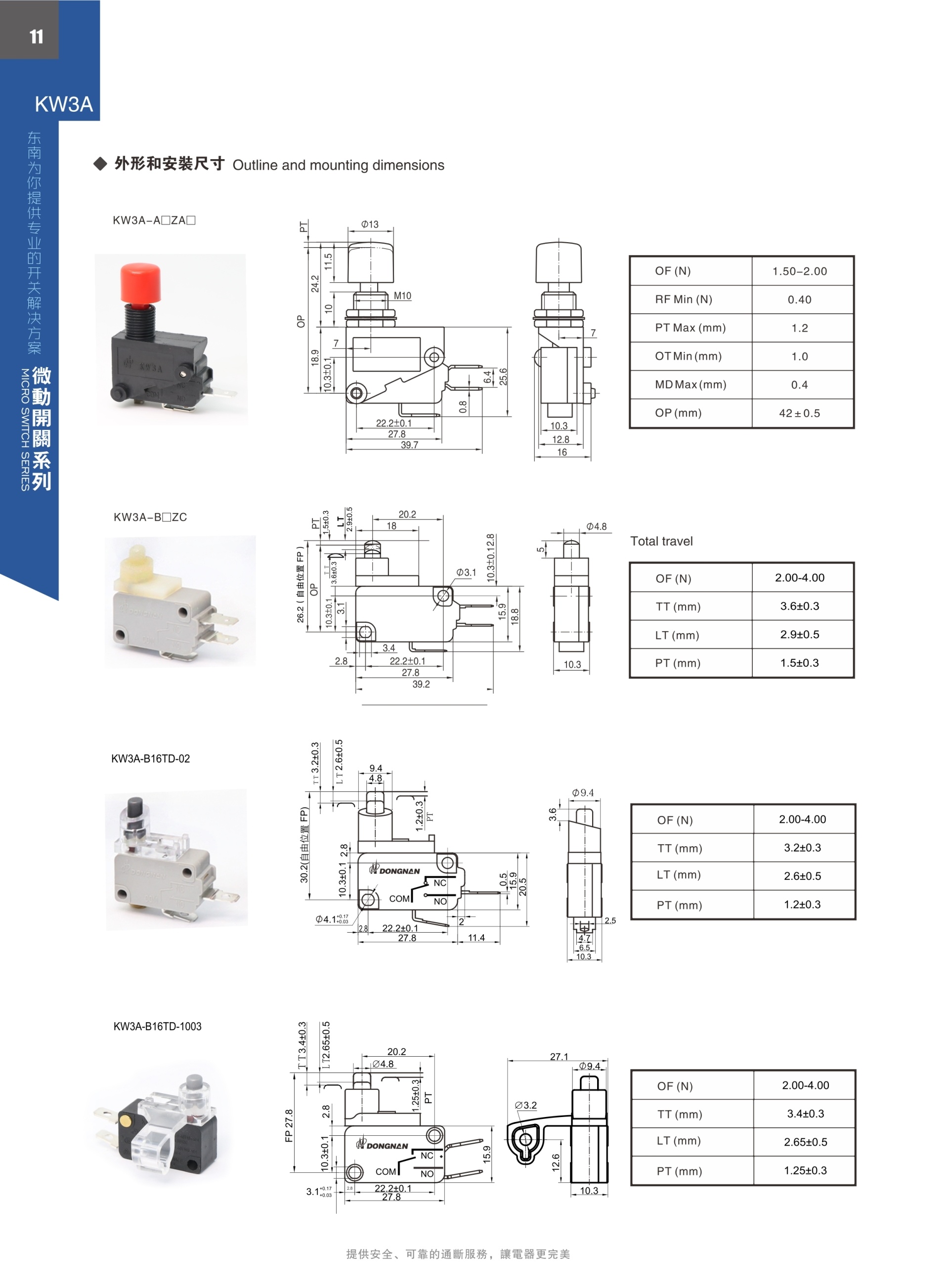

The KW3A switch is a highly sensitive and long-lasting micro switch. Various forms of actuators are available such as no lever, short lever, long lever,arc lever,etc. KW3A switches are also available in a wide range of temperature ratings and can withstand high temperatures up to 200℃.
Key words:- KW3A，微动开关，东南电子
-
-
