AS1 Air Switch Assembly Safty Long Life for Home Appliances
所属分类：
Other Switch
关键词： AS1 Air Switch Assembly Safty Long Life for Home Appliances
产品附件：
在线留言
- Description
- Video
-
- Commodity name: AS1 Air Switch Assembly Safty Long Life for Home Appliances
- Commodity ID: 54
AS1 garbage disposal air switch assembly high temperature 25A We provide garbage disposal air switch components with high temperature resistance of 25A. Southeast Micro Switch Company produces micro switches, waterproof switches and other types of switches, and has obtained 34 utility model patents. If you need to switch, please let us know.

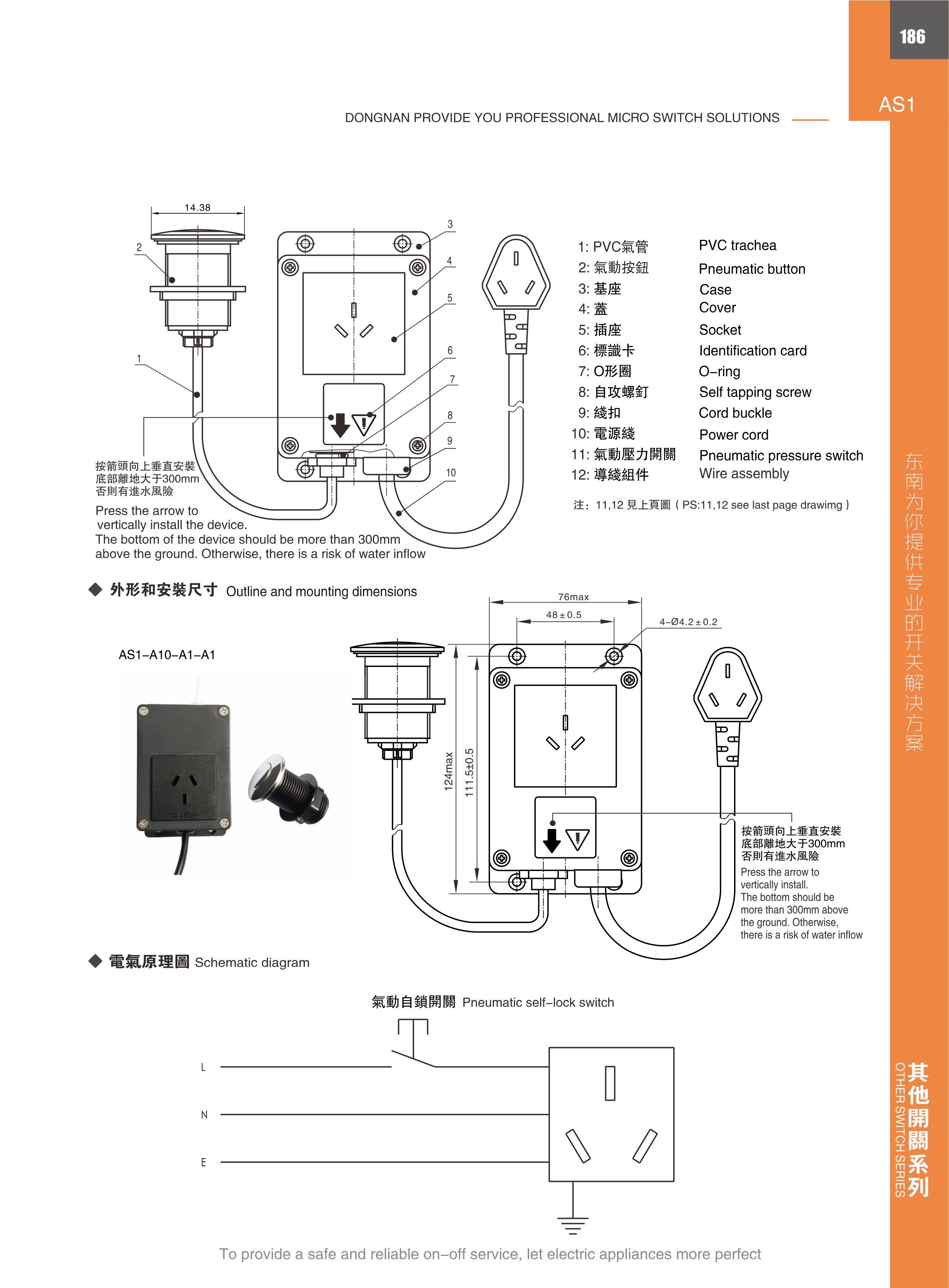

AS1 Air Switch Assembly Safty Long Life for Home Appliances
1.Product Introduction
AS1 air switch assembly is safer to isolate eletricity from people and long service life. It usually used in home appliances. We are the switching company that can provide safe and high quality products at competitive prices with no middleman. If you need favourable price, please contact us!
2.Product Parameter
Item
Value
Operating frequency
Mechanical 10/min Electrical 10 cycles/min
Insulation resistance
Cold state≥100MΩ (500VDC);Tidal state≥10MΩ (500VDC)
(Test Voltage)Between terminals of the same polarity
AC1000V,50/60Hz,1min
(Test Voltage)Between current-carrying metal parts and ground(case).and between each terminal and non-current-carrying metal parts.
AC1500V,50/60Hz,1min
Vibration resistance
10~55Hz,1.5mmDouble amplitude
Socket performance
Unplug the socket 5000 times repeatedly
Life
Electrical≥15,000 cycles
3.Product Feature and Application
AS1 air switch assembly has a variety of jacks such as national standard, European or German standard, American standard, Legal standard, British standard and Australian standard. It is safer to isolate electricity from people. We can find it in dishwasher, garbage crusher,etc.
