Electric Heater Small Gap Micro Switch Long Life Suitable For Small Current Environment
Category：
Solution
Home Appliance
Electric Heater
Keyword： Electric Heater Small Gap Micro Switch Long Life Suitable For Small Current Environment
Accessories：
Message
- Description
- Product Parameters
- Video
-
- Commodity name: Electric Heater Small Gap Micro Switch Long Life Suitable For Small Current Environment
3.Product Application of Electric Heater Small Gap Micro Switch This customization micro switch enable on-off control of electric heaters. When the user needs to start the heater, the micro switch can close the circuit by feeling the user's operation, thus making the heater start working. On the other hand, when the user switches off the heater, the heater long roller boom micro switch detects the action and breaks the circuit, ensuring that the
Electric Heater Small Gap Micro Switch Long Life Suitable For Small Current Environment
1.Product Introduction of Electric Heater Small Gap Micro Switch
Electric heater small gap micro switch is suitable for small current frquent conversion working environment and long life. We are experts in the production of switches, and many foreign customers have visited our company. We welcome you to visit us!

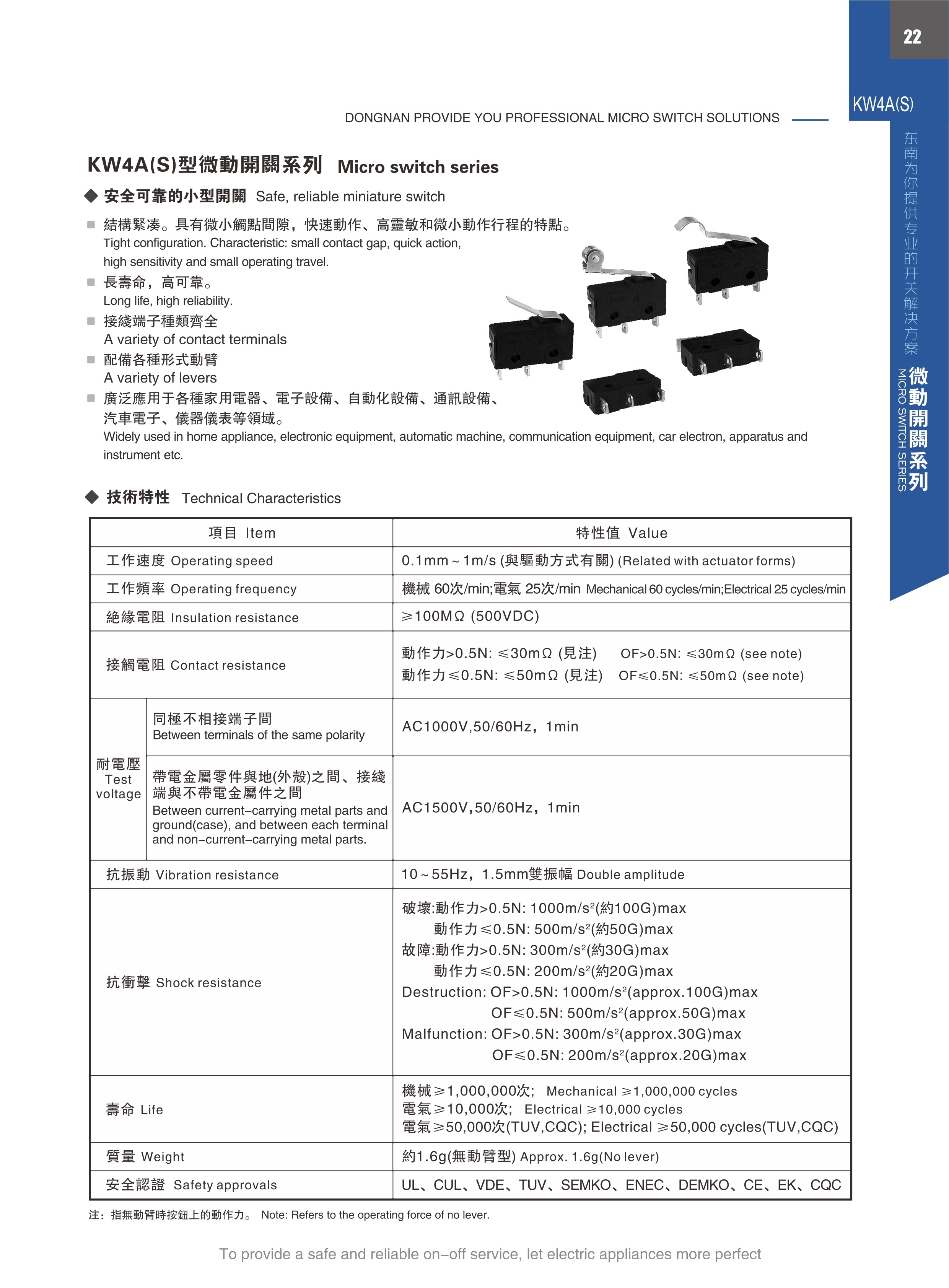

2.Product Parameter of Electric Heater Small Gap Micro Switch
Item
Value
Operating speed
0.1mm~1m/s (Related with actuator forms)
Operating frequency
Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance
≥ 100MΩ(500VDC)
Contact resistance
OF>0.5N:≤30mΩ
OF≤0.5N:≤50mΩ(Test voltage) Between terminals of the same polarity
AC1000V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and Ground(case), and between each terminal and non-current-carrying metal parts.
AC1500V , 50/60Hz , 1min
Vibration resistance
10~55Hz , 1.5mm Double amplitude
Shock resistance
Destruction:OF>0.5N:1000m/s2(approx.100G)max
OF≤0.5N:500m/s2(approx.50G)max
Malfunction:OF>0.5N:300m/s2(approx.30G)max
OF≤0.5N:200m/s2(approx.20G)maxWeight
Approx.1.6g(No lever)
Life
Mechanical ≥ 1,000,000 cycles
Electrical ≥ 10,000 cycles
Electrical ≥ 50,000 cycles(TUV, CQC)Safety approvals
UL,CUL,VDE,TUV,ENEC,SEMKO,DEMKO,CE,EK,CQC
3.Product Application of Electric Heater Small Gap Micro Switch
This customization micro switch enable on-off control of electric heaters. When the user needs to start the heater, the micro switch can close the circuit by feeling the user's operation, thus making the heater start working. On the other hand, when the user switches off the heater, the heater long roller boom micro switch detects the action and breaks the circuit, ensuring that the
