- Commodity name: Sound SPST Power Switch Various Terminal Types with UL CUL VDE Certifications
3.Product Feature and Application of Sound SPST Power Switch Power switch provides stability and safety for sound systems. This micro power switch usually includes functions such as overload protection and short-circuit protection. Once it detects excessive current or short-circuit conditions, it will immediately cut off the power supply to avoid equipment damage or fire and other dangers. This kind of protection can ensure the normal operation of the sound system and protect the safety of users at the same time.
Sound SPST Power Switch Various Terminal Types with UL CUL VDE Certifications
1.Product Introduction of Sound SPST Power Switch
Sound power switch can choose various terminals like PCB terminal and it is SPST type with UL CUL VDE certifications. A manufacturer of microswitches, waterproof switches, power switches we are. For more information, please contact us.

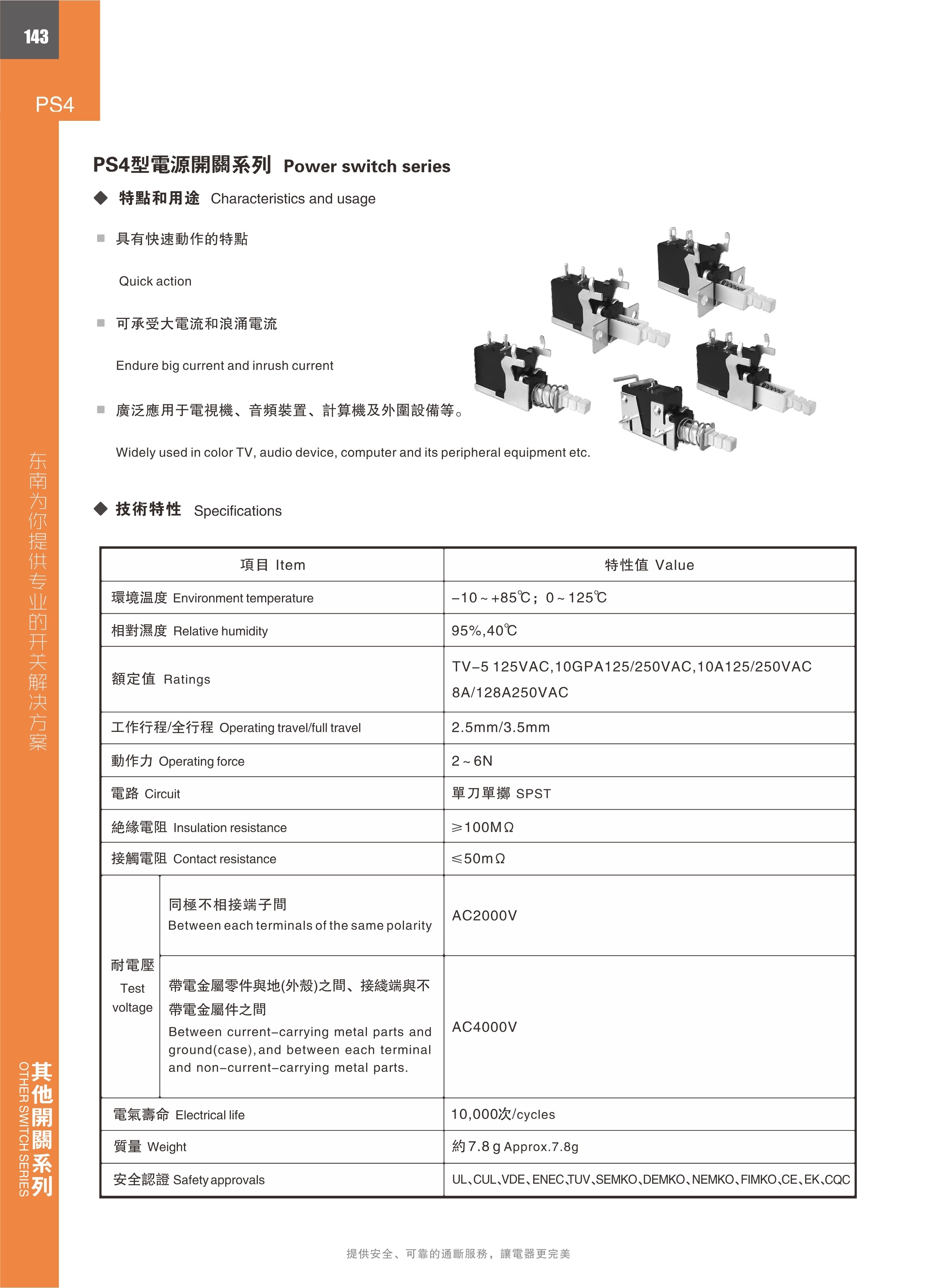

2.Product Parameter of Sound SPST Power Switch
Item
Value
Environment temperature
-10~+85°C, 0~125°C
Relative humidity
95%,40°C
Ratings
TV-5 125VAC , 10GPA125/250VAC , 10A125/250VAC
8A/128A250VACOperating travel/full
2.5mm/3.5mm
Operating force
2N~6N
Circuit
SPST
Insulation resistance
≥100MΩ
Contact resistance
≤ 50mΩ
(Test voltage) Between each terminals of the same polarity
AC2000V
(Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts
AC4000V
Electrical Life
10,000 cycles
Weight
Approx . 7.8g
Sofety approavals
UL , CUL , VDE , ENEC , TUV,SEMKO , DEMKO , NEMKO , FIMKO ,CE , EK , CQC
3.Product Feature and Application of Sound SPST Power Switch
Power switch provides stability and safety for sound systems. This micro power switch usually includes functions such as overload protection and short-circuit protection. Once it detects excessive current or short-circuit conditions, it will immediately cut off the power supply to avoid equipment damage or fire and other dangers. This kind of protection can ensure the normal operation of the sound system and protect the safety of users at the same time.
